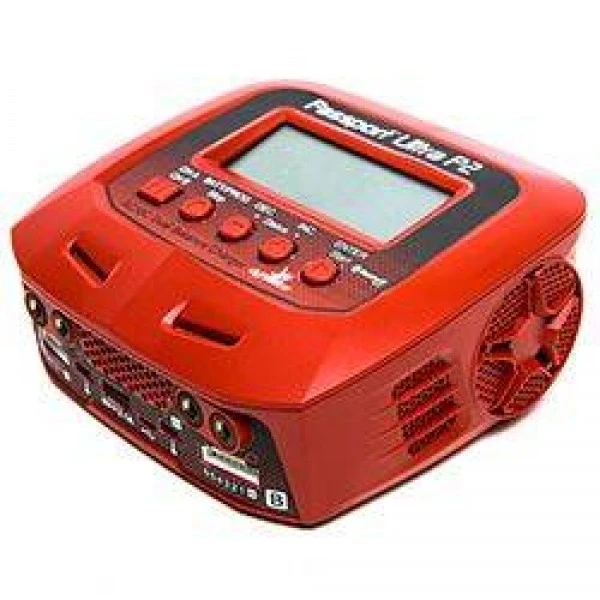

Dynamite Passport P2 AC Plus 2 Port AC/DC Multi-Charger

The Dynamite® Passport™ P2 AC Plus 2 Port AC/DC Multi-Charger represents the pinnacle of premium, high-performance chargers. With dual 100W output capability, the Passport P2 can charge Li-Po batteries in half the time it takes lower wattage/amperage chargers. In addition, you get the full gamut of charging features, including the ability to charge virtually all battery types and intuitive LCD display.

Dynamite Dashboard
The Dynamite Dashboard provides seamless integration to select Dynamite “P” Series chargers by bringing real-time monitoring to your mobile device. You can monitor the charge status of your batteries, view real time battery stats including; battery type, battery cells, charge current, voltage, battery capacity, battery charge level and more. Simply download the app, pair your mobile device to the compatible Dynamite P-Series charger via Bluetooth and take advantage of viewing real-time charge stats while monitoring your battery’s charge process. With Bluetooth communication, the Dynamite Dashboard puts your charge setting control at your fingertips.

Thanks to Dynamite’s QR Scan with Smartphone control functionality, you can scan the QR code on your Dynamite Reaction 2.0 batteries to automatically set the optimal charge settings for that specific battery making using Dynamite “P” Series chargers easy, convenient and safe. Additionally, you have the ability to create your own QR codes for any battery line/specs.

• Powerful 100W AC/DC Multi-Charger
• Two channels charge two different kinds of batteries simultaneously
• Charges Lipo, LiHV, LiFe NiMH/NiCd, and Pb batteries
• Charges 1-6 cell Lipo/ LiHV/LiFe, 1-15 cell NiMh/NiCd, and 2-20V Pb
• Dynamite Dashboard-Smart phone control and monitor via Bluetooth
• High visibility, simplified LCD interface
• Built-in balancing ports
• Integrated voice functionality
• 5-year limited warranty

Ampere Meter: Yes – on main LCD display

Battery Balance Connector: XH Balancing Adapter Board

Battery Temperature Monitoring: Yes – Temperature Sensor not included

Battery Type: 1-2S LiFe, LiIon, LiPo; 1-2C NiCd, NiMH; 2-12V Pb

Cooling Method: Cooling fan

Discharge: Yes

Display: Yes

Height: 2.6″ (67mm)

Input Connector: AC cord, detachable, North American plug

Input Voltage: 100-240V AC or 11-18V DC

Integrated Balancing: Yes – Internal Balancer & External Adapter

Length: 5.5″ (140mm)

Low Input Voltage Protection: Yes

Maximum Charge Rate: 0.1A-10A x 2

Maximum Continuous Discharge Rate: 0.10A-2.0A x 2

Model Memory: Yes

Output: 100W max AC, 200W DC

Output Connector: Banana Plug to EC3

Over Current Protection: Yes

PC Required: No

Peak Detection: Yes

Programmable: Yes

Reverse Polarity Protection: Yes

Safety Timer: Yes

Selectable Charge Rate: Yes – Incremental (0.1A Increments)

Short Circuit Protection: Yes

Thermal Protection: Yes

Voltage Meter: Yes – on main LCD display

Weight: 1.4lbs (668g)

Width: 6.0″ (153mm)
