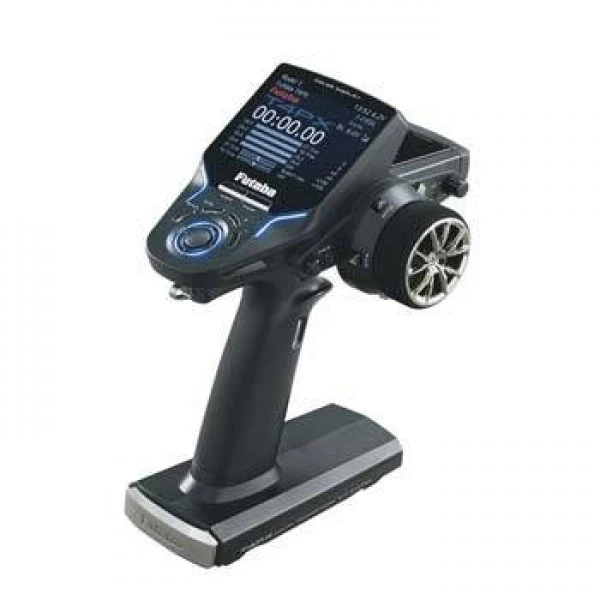

Futaba 4PX 4-Channel 2.4GHz T-FHSS Radio System With R304SB Receiver

At the heart of the 4PX is a full-color TFT (Thin Film Transistor) display that’s easy to read in any light condition. This large, 3.5″ (89 mm) LCD has intuitive menus and clearly labeled graphics for hassle-free operation. Racers can even monitor lap times and battery voltage in real time without having to scroll through multiple menus.

The 4PX also includes a synthesized voice for telemetry data, so drivers can hear the latest updates through the built-in speaker or headphones (sold separately). A large, assignable button on the bottom of the transmitter lets users activate key features instantly.

Compatibility with T-FHSS, S-FHSS and FASST protocols gives drivers the freedom to use the 4PX with their favorite Futaba 2.4GHz receivers. Durable, long-lasting potentiometers result in improved, precise calibration; insert a micro memory card (sold separately) to update software and transfer models from one 4PX to another.

Other highlights include multiple crawler functions, two trigger choices and a steering wheel with drop-down option – all proven features by drivers all over the world. Of course, they only represent a small part of everything the 4PX has to offer. See the features below for a full list of what the 4PX has to offer.

• 30% faster and 0.5 oz (15 g) lighter than the 4PKS-R
• 3.5″ (89 mm) QVGA (Quarter Video Graphics Array) TFT (Thin Film Transistor) color LCD screen makes navigation and programming fast and simple
• Three grip choices (two are optional)
• Durable, long-life wheel potentiometers
• Two durable, throttle trigger options with tension adjustments
• Large, assignable switch that can be touched by a driver’s body is located on the bottom edge of the transmitter
• Low steering wheel position with drop-down option
• Steering wheel can be switched for left-handed drivers
• Trigger unit can be adjusted forward or backward by 7 mm
• Compatible with these T-FHSS, S-FHSS and FASST receivers: R304SB, R304SB-E, R614FS, R614FF-E, R2104GF, R204GF-E, R203GF and others as they are developed
• 31 telemetry sensor slots available (sensors sold separately)
• Synthesized voice for telemetry data
• Multiple crawler functions — including 4WS mixing and Dual ESC mixing
• Comfortable feel/balance
• Internal aluminum frame
• 5 programmable mixes
• 40-model memory
• Steering mixer
• Brake mixer
• Gyro mixer
• CPS (Channel Power Switch) mixer
• Tilt mixer
• Adjustable dual-compound steering wheel can be switched around for a different feel
• Multi-function jog switch
• Grip with built-in vibration
• Built-in S.Bus servo/Futaba ESC/telemetry sensor programmers.
• Mechanical ATL
• 32° and 34° wheel adapters
• “Telemetry Disabled” LED indicator
• Earphone jack
• Battery charging jack
• Built-in speaker
• Adjustable rotating antenna
• Compatible with 2S LiFe batteries, NiMHs, dry cells and other battery options. Lasts approximately 10 hours in T-FHSS mode and approximately 6 hours in FASST mode using a LiFe battery
• Micro memory card slot
• Free user-updateable software
• Push-button power switch with auto-off function
• Clock and voltage meter
• Neck strap holder
