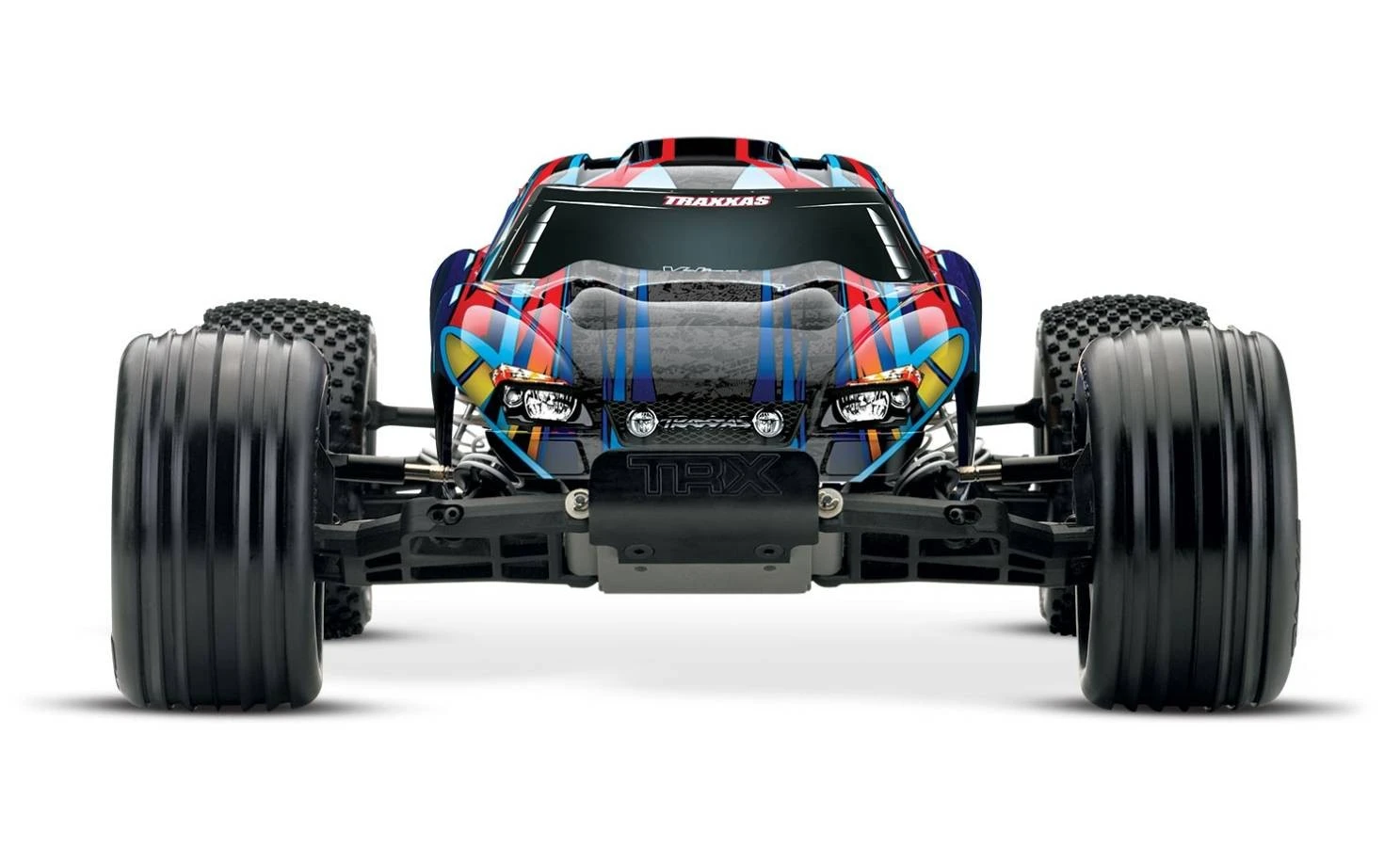

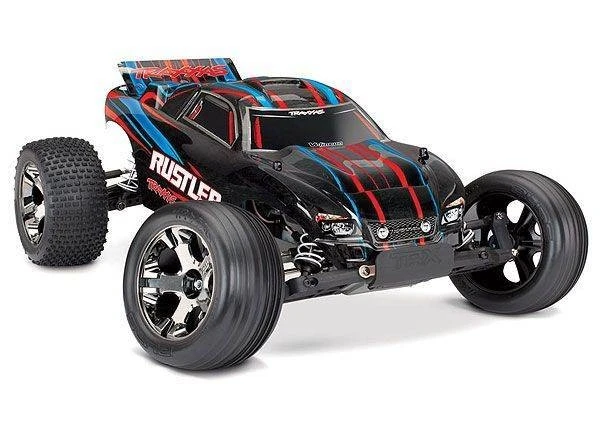

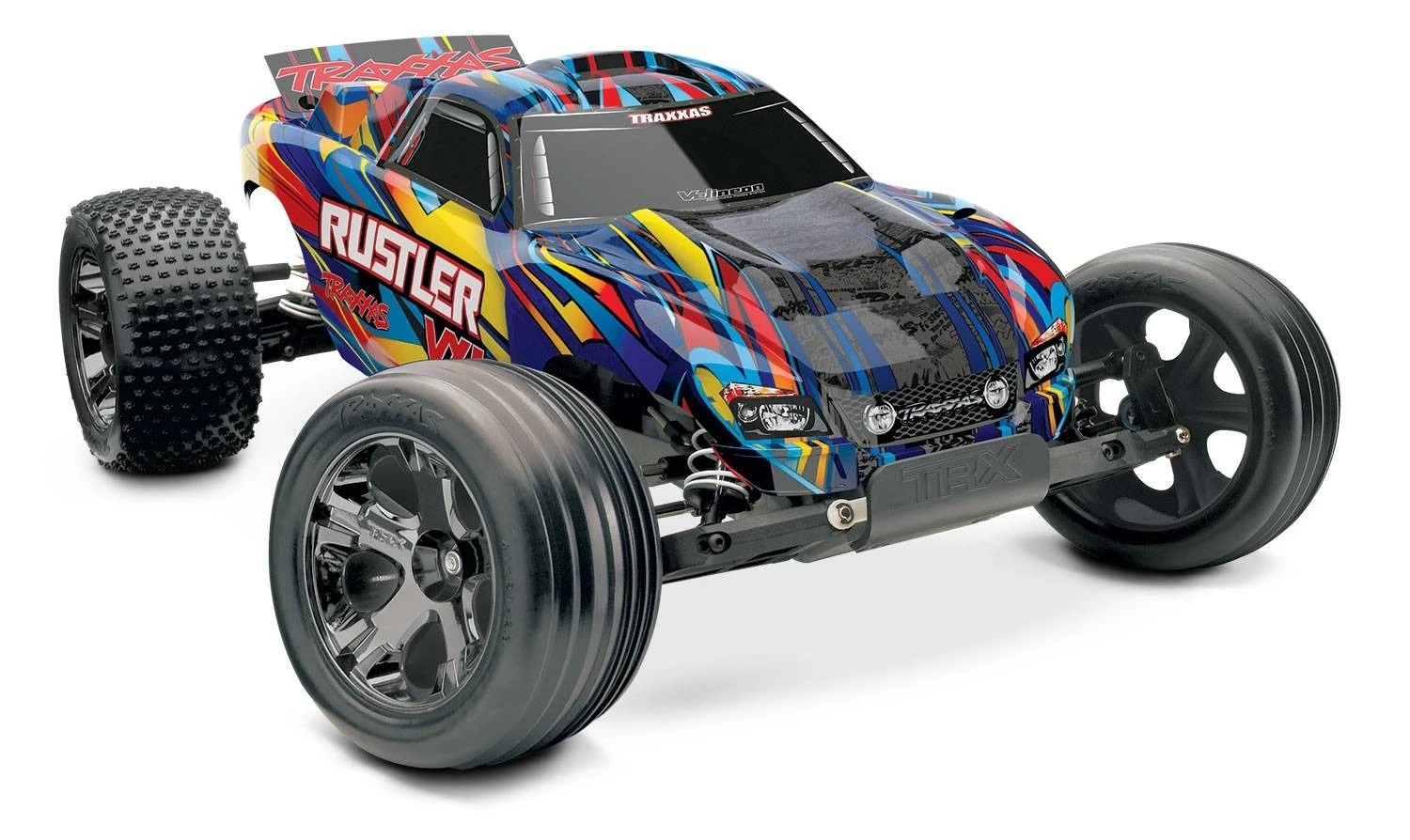

Rustler VXL 1/10 Stadium Truck With Traxxas Link & TSM, Red

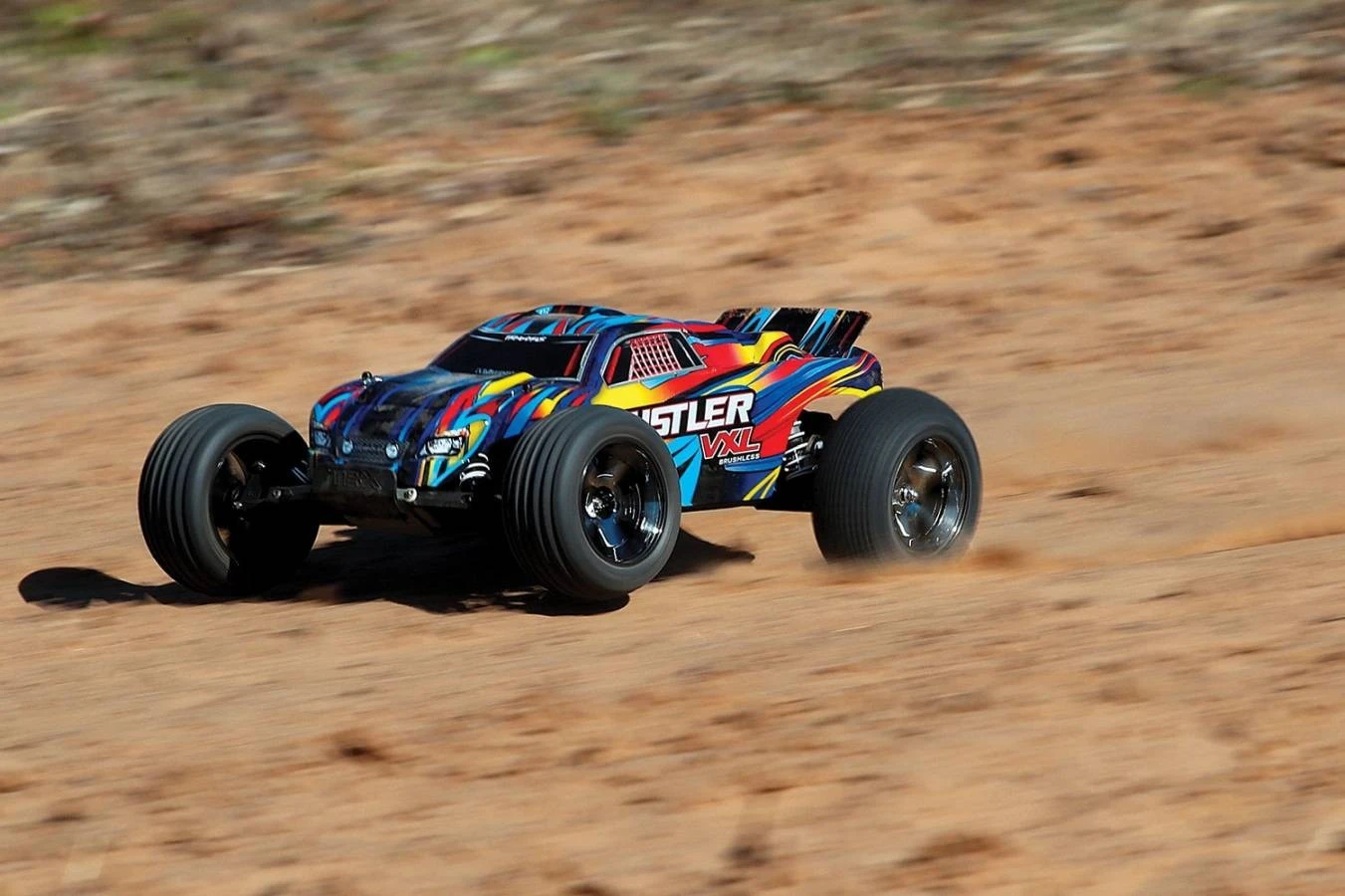

Rustler VXL combines Traxxas Stability Management® (TSM) and Velineon® extreme horsepower with the proven fun and durability that made Rustler the number-1 selling electric stadium racer. The Velineon Brushless Power System launches Rustler VXL to new heights with speeds of 70mph and beyond! Hardcore, wheel-standing acceleration completely blows everything else away. Rustler’s low, wide stance provides razor-sharp handling and phenomenal grip with TSM keeping you in firm control. Go ahead, rip full throttle! Rustler kicks up towering roosts of mud and its waterproof electronics ensure that no adventure is out of reach, no matter how extreme!

• Traxxas Stability Management®
• Powered by the Velineon® Brushless Power System
• Rustler VXL reaches speeds in excess of 70mph!*
• Patented Traxxas High-Current Connector transfers maximum voltage to the Velineon Brushless Power System
• Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow
• Maxx® Cable 12-gauge wire
• Velineon VXL-3s Electronic Speed Control
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• Sport Mode – forward / brake / reverse
• Race Mode – forward / brake
• Training Mode™ – 50% forward / brake / 50% reverse (patented)
• Velineon 3500 Brushless Motor
• Consistent, high-power output, run after run
• Low-maintenance, unique Traxxas design
• Efficient, high-speed ball bearings
• Precision-balanced rotor

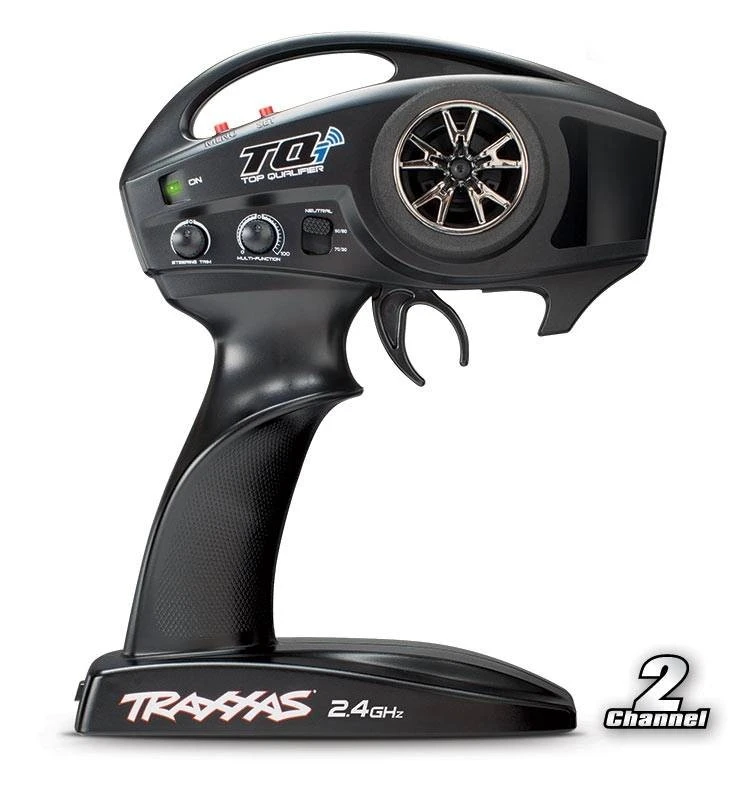

• TQi 2.4GHz transmitter
• Compatible with optional Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control

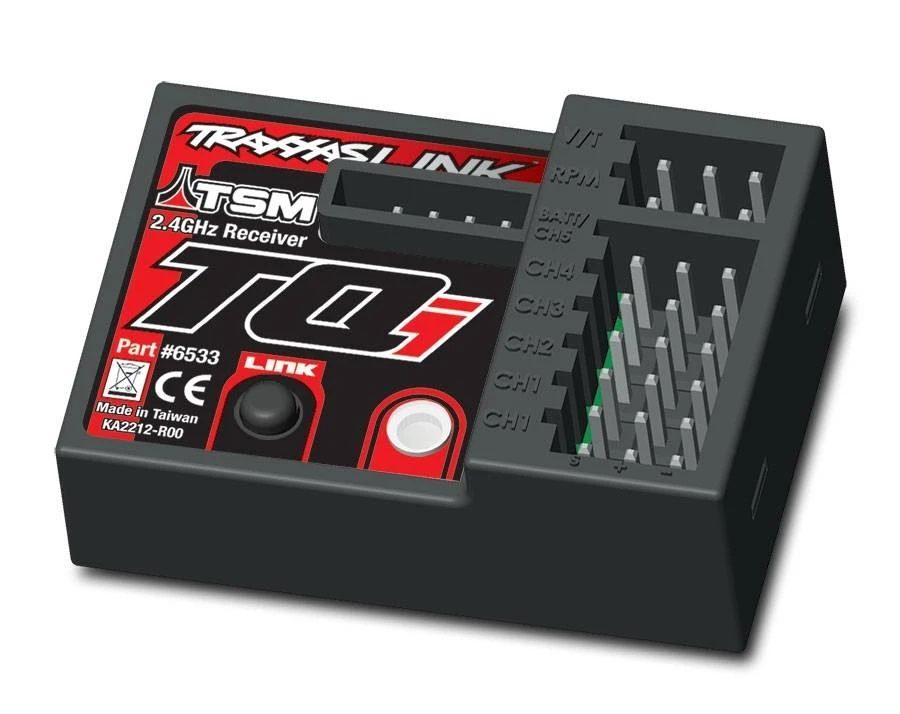

• TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) (#6533), fail-safe security and integrated telemetry ports
• Digital high-torque Traxxas 2075 waterproof steering servo
• Durable steel turnbuckles and captured rod ends
• Efficient Magnum 272™ steel-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Torque-Control™ slipper clutch system
• External gear cover with easy slipper access
• Reliable composite planetary gear differential
• Updated heavy-duty telescoping U-joint driveshafts and yokes

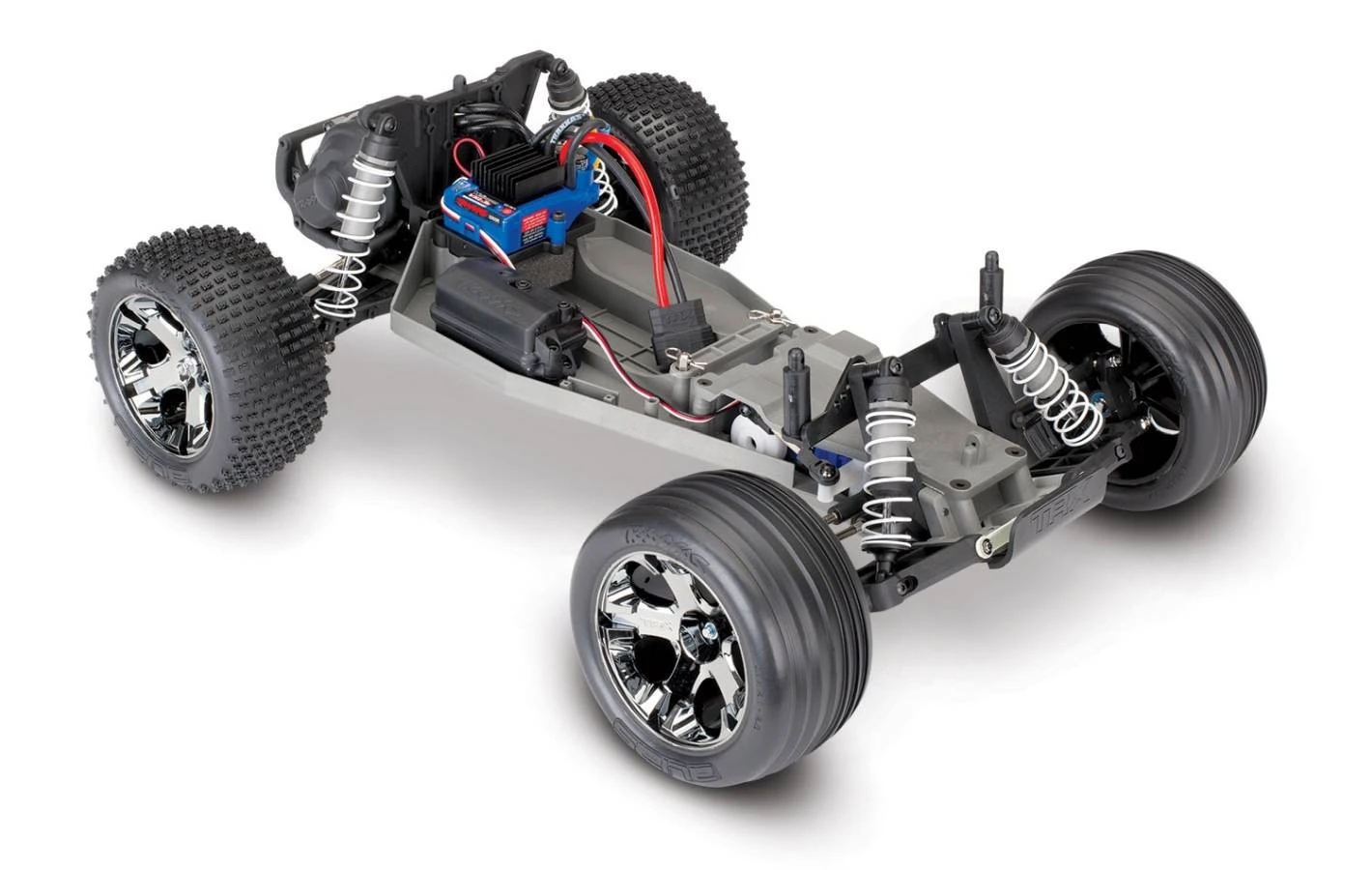

• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Easy access battery compartment

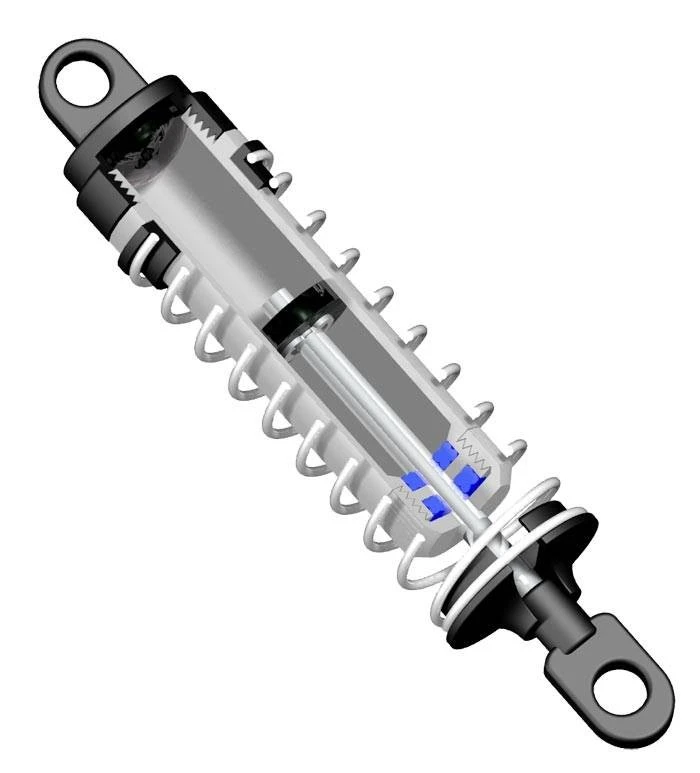

• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Alias™ step-pin rear tires and Alias ribbed front tires offer superior
• off-road traction
• Rustler’s tires include performance foam inserts and come
• pre-glued on black chrome 2.8″ All-Star™ wheels
• Tough ProGraphix® pre-painted body
• Wing attaches securely to the body with precision hex hardware
• Rustler is backed by unparalleled Traxxas support and parts availability

Length: 17.5″ (445mm)

Front Track: 12.25″ (311mm)

Rear Track: 12.25″ (311mm)

Weight: 59.6oz (1.69 kg)

Height (Overall): 7″ (178mm)

Wheelbase: 11.375″ (289mm)

Front Shock Length: Long

Rear Shock Length: XX-Long

Front Tires (Pre-Glued): Alias™ Ribbed 2.8″

Rear Tires (Pre-Glued): Alias™ Step-Pin 2.8″

Front Wheels: 2.8″ Black-Chrome (All-Star™)

Rear Wheels: 2.8″ Black-Chrome (All-Star™)

Electronic Speed Control: VXL-3s™ Electronic Speed Control

Motor (Electric): Velineon® 3500 Brushless

Gear Ratio (internal): 2.72 (Final Drive: 9.05)

Differential Type: Planetary

Gear Pitch: 48-Pitch

Transmission: Magnum 272™

Steering: Bellcrank

Chassis Type: Modified Tub

Chassis Material: Composite Nylon

Radio System: TQi™ 2.4GHz Radio System w/TSM Receiver

Top-Speed: 70+mph**

Skill Level: 2

*Battery Tray Dimensions: 139mm x 47.5mm x 28mm

**With 3S LiPo battery and optional 31-tooth pinion gear (sold separately)

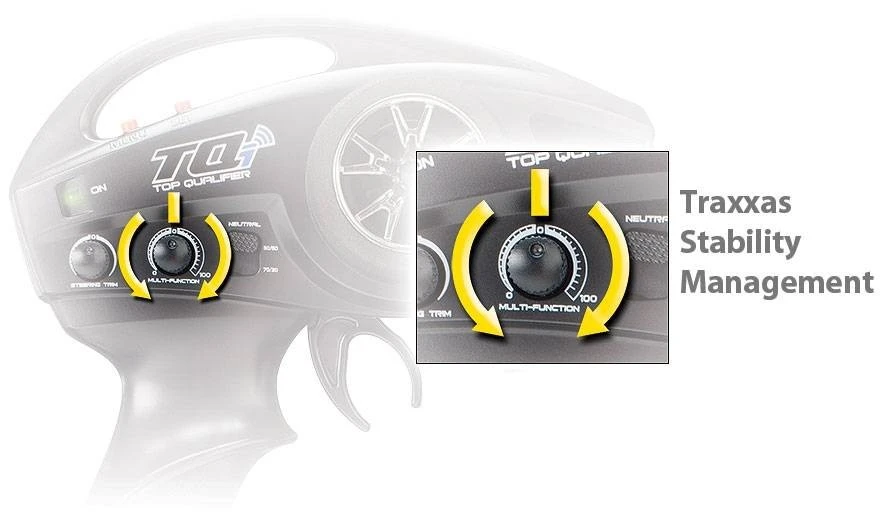

Traxxas Stability Management:
Traxxas Stability Management (TSM) makes it possible to experience all the extreme power, speed, and acceleration that was engineered into Traxxas models by making it much easier to control the vehicle on common slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle’s direction and making steering corrections to provide straight-ahead full throttle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep Traxxas trucks arrow straight until they come to a complete stop. Traxxas TSM gives all the benefits modern electronic stabilization has to offer without intruding on driving fun or introducing unexpected side effects that can be found on other systems such as drastically reduced turning radius, braking assistance that times out (quits), throttle restrictions, and an overall disconnected driving feel. Traxxas engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. TSM can be fine-tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. The result is driving faster, with more ease, and having more fun. In fact, the driver may not even realize how much TSM is helping until it is turned off and their driving skills are tested without it!

The World’s Most Advanced Ready-To-Race® Radio System:
Total Control. Traxxas models deserve the world’s most advanced Ready-To-Race® radio system. The radio system is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas® TQi™ radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It’s so advanced; it doesn’t even need an external antenna.

Traxxas Link Wireless Module Compatible:
The TQi’s most important feature may already be in your pocket. Equip the TQi with a Traxxas Link Wireless Module (#6511, sold separately) and turn your Android, iPad® iPhone® or iPod touch® (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that optimizes your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. The Traxxas Link Application is available on Google Play and the App Store.

Patented Sealed Watertight Receiver Box:
Rustler VXL’s receiver is fully enclosed to protect it from the elements. The antenna and servo wires route neatly through a special watertight seal and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box.

Hex Hardware:
Rustler VXL uses pro-quality, high-grade, metric hex-drive hardware for extra strength and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

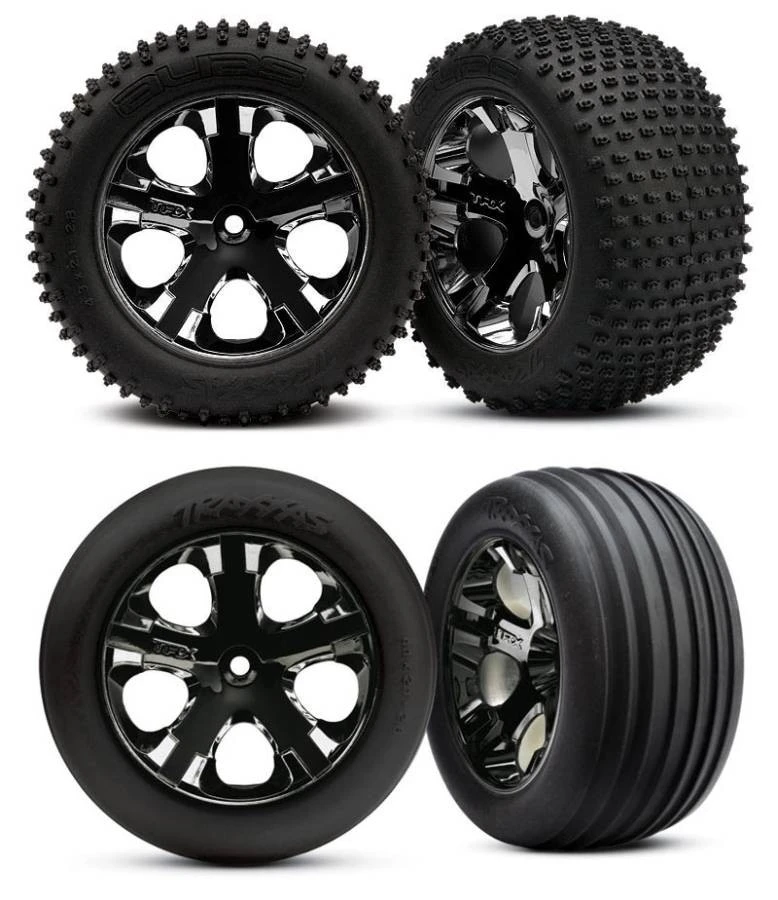

Tires and Wheels:
The Rustler VXL features new 2.8″ All-Star™ black-chrome wheels.­ Alias™ rear tires feature a step-pin design, front Alias ribbed tires provide superior control, and performance-engineered foam inserts keep the truck firmly planted on extreme off-road terrain.

The black-chrome All-Star wheels feature a lightweight horizontal bead that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts are standard and all tires come pre-glued from the factory to get you rolling right out of the box.:

Magnum 272™ Transmission:
The Rustler VXL’s Magnum 272 transmission features all metal gear internals riding on ultra-smooth sealed ball bearings. Combined with the smooth 48-pitch gears, power transfers quietly to the durable telescoping U-joint driveshafts. The sealed gearbox protects the transmission components from dirt and rocks.
