Sale!

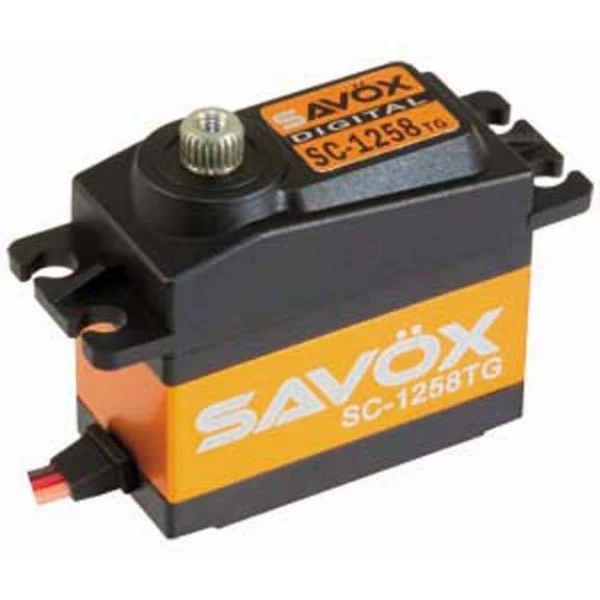

Savox Ryan Cavalieri Edition Coreless Digital Servo, .08sec/166oz @6V

Original price was: $74.99.Current price is: $52.49.

SKU: BHBYY 4710006990644 Categories: Electronics, Helicopters Tag: Savox (SAV)

Multiple safe payment methods
Quality at its Finest
No Compromise on Quality
Service that stands out, online and always timely.

The SC1258TG is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.

features

Extremely strong titanium gears ensure long-life, durability, and light weight.
Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
Aluminum middle case allows for cooler operating temperatures.

Specs

Operating Temperature: 14° – 122°F (-10° – 50°C)

Running Current (no load): 100mA @4.8V, 120mA @6.0V

Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V

Idle Current: 5mA @4.8V, 5mA @6.0V

Wire Length: 250 +/- 5mm

Output Gear Spline: 25 Tooth

Bearings: 2BB

Operating Travel: 100° (1000 → 2000 µ second)

Neutral Position: 1500 µ second

Pulse Width Range: 800 → 2200 µ second

Maximum Travel: Appx 130° (900 → 2100 µ second)

Refresh Rate: 333 Hz

Motor Type: Coreless

Torque @ 4.8v: 9.6kg/133.3oz-in

Torque @ 6v: 12.0kg166.6oz-in

Speed @ 4.8v: 0.10 sec/60 deg

Speed @ 6v: 0.08 sec/60 deg

Dimensions L x W x H (mm): 40.8 x 20.2 x 37.2

Weight: 64g

Part Number	SAVSC1258TG
Maximum Travel	Appx 130° (900 → 2100 µ second)
Dimensions L x W x H (mm)	40.8 x 20.2 x 37.2
Speed @ 6v	0.08 sec/60 deg
Speed @ 4.8v	0.10 sec/60 deg
Torque @ 6v	12.0kg166.6oz-in
Torque @ 4.8v	9.6kg/133.3oz-in
Motor Type	Coreless
Refresh Rate	333 Hz
Pulse Width Range	800 → 2200 µ second
Operating Temperature	14° – 122°F (-10° – 50°C)
Neutral Position	1500 µ second
Operating Travel	100° (1000 → 2000 µ second)
Bearings	2BB
Output Gear Spline	25 Tooth
Wire Length	250 +/- 5mm
Idle Current	5mA @4.8V, 5mA @6.0V
Stall Current (at locked)	4000mA @4.8V, 5000mA @6.0V
Running Current (no load)	100mA @4.8V, 120mA @6.0V
Weight	64g
