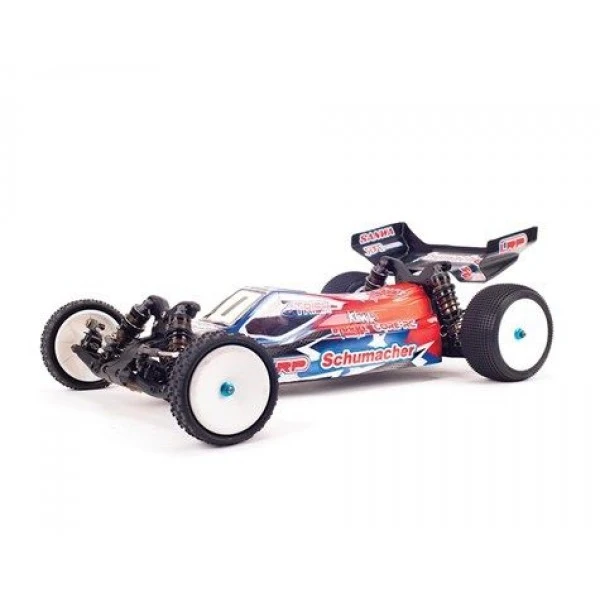

Schumacher Racing Cougar Laydown 1/10 2WD Off-Road Buggy Kit

The Schumacher Cougar Laydown Stock Spec 2WD 1/10th Off-Road Competition Buggy Kit, an evolution of the EOS winning Cougar Laydown. Schumacher has taken the proven Cougar Laydown and paid detailed attention to reducing the overall weight.

This ‘Stock Spec’ 2WD Off Road Buggy is equipped with a Carbon Fibre Chassis, Carbon Fibre Motor Plate, Alloy Layshaft and Spur Lockout, Carbon Fibre Lower Transmission Housings and is topped with an Aerox 0.5mm Ultra Light body. ‘Stock Spec’ displays its versatility with outstanding performance on a wide range of grip levels, from carpet, astro and dirt. Enjoy the next evolution of this adaptive and competitive buggy.

• Lightweight 2.5mm carbon fibre chassis, -5mm.
• Lightweight carbon fiber motor plate.
• Lightweight alloy layshaft.
• Lightweight alloy spur lockout.
• Lightweight carbon fiber transmission housings.
• Aerox 0.5mm Ultra Light Body.
• 3 gear, low center of gravity sealed gearbox.
• Small, low rotating mass transmission, including gear differential. With 3 position height adjustment, to adjust for driveshaft plunge and mixed track conditions. Optional ball diff available.
• Easy access transmission system, for quick diff access and maintenance.
• Screw Piston Fixing, with titanium nitride shafts, for easy build, precision and durability.
• Dual position radio equipment mounting plate.
• Front shock tower cover to protect your car and the track.
• Lightweight steel CVD driveshafts.
• Low drop wing mount.
• Lightweight lower spring retaining cup.
• Rear wishbone geometry.
• Inboard Toe Inserts.
• Adjustable rear roll centers, inboard toe-in and anti- squat.
• Rear transmission mounted pivot strap. Increased chassis clearance.
• Threaded spring collars, for better location and adjustment.
• Spur Gear Shield.
• Cable management system.
• 2mm Hex Pro ball studs.
• 23 super precision ball bearings.
• Compact steering system for improved in-line weight placement, with adjustable and dynamic ackerman.
• Front 5 deg yokes with adjustable roll center heights.
• Strong front steering hub, with fine ‘Kwik Klip’ adjustment.
• Class leading suspension geometry with durable components and a range of optional alloy parts, offering adjustments to set up your Cougar Laydown.
• Big bore shocks with big bore “CORE” springs. Threaded collars and twin o-ring sealing.
• Improved, more durable, lightweight ball mounted, two piece shock cap with bleed screw.
• Front camber captive ball joints.
• ‘Gull Wing’ wishbones with anti roll bar option.
• 12mm Hex Wheels with industry standard offset.
• Shock seal pack housing with ‘O’ ring sealing to prevent loosening.
• Multiple battery fitting options.
• Specially formulated composite molded side pods for advanced chassis stiffness tuning.
• Easy to use battery thumb screws.
• Durable, specially formulated composite “S2” material 4mm shock tower mounts.
• Rear transmission mounted pivot strap. Increased chassis clearance.
• Optional rear shock location in front or behind the wishbones, standard in the kit.

Power Source: ELECTRIC

Model Type: 2WD, OFF-ROAD, COMPETITION

Length: 395mm

Width: 245mm

Wheelbase: 285mm

Top Speed: 40 MPH+
