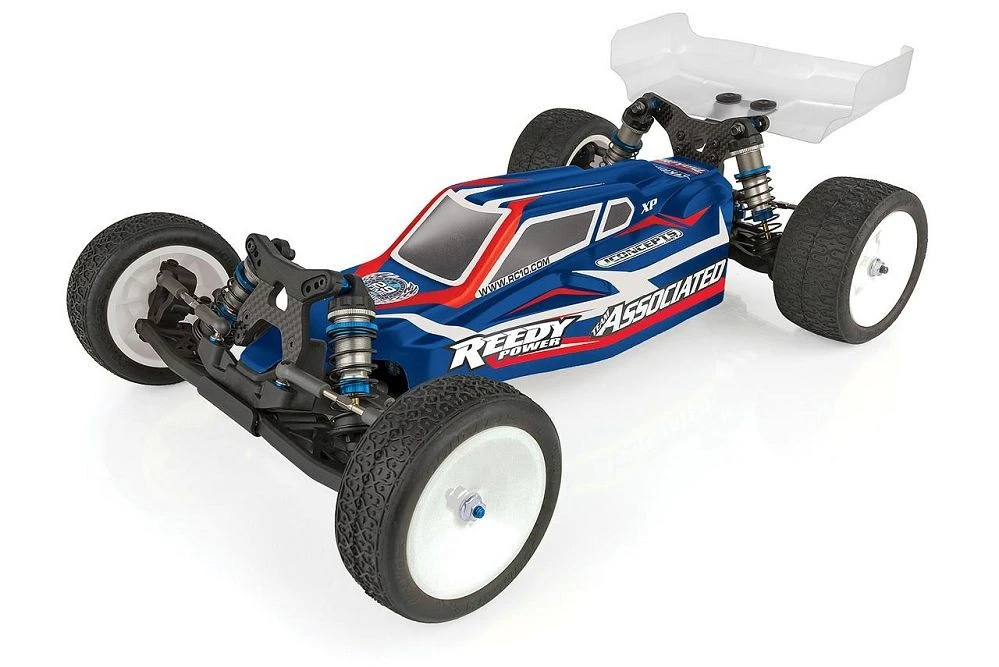

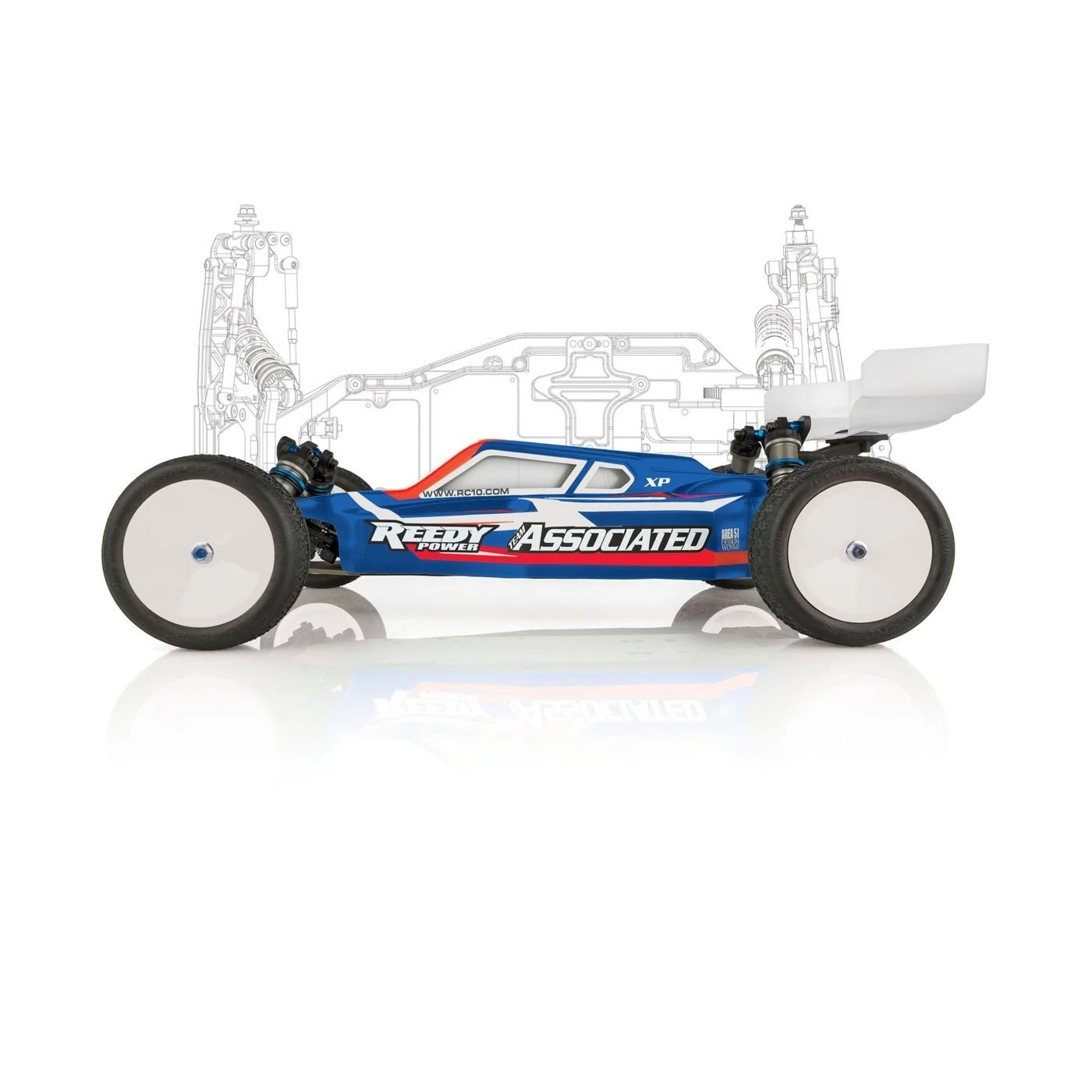

Team Associated RC10B6.1DL 1/10 2WD Buggy Team Kit, Limited Edition

1/10 scale 2WD off road has been Team Associated’s signature class since the release of the RC10 in 1984. The Team Associated RC10 buggy series has won 12 of the 17 I.F.M.A.R. World Championships contested since the racing class began. In fact, Team Associated

The engineering continues.
The Limited Edition B6.1DL will be the buggy of choice for tracks with very high traction where a forward mass is beneficial and chassis roll needs to be tamed through a low center of gravity. The B6.1DL has a Laydown Stealth® transmission that gives the car additional traction when exiting the corners. The addition of +1 Ackermann plates and gull wing suspension arms tune the steering for a razor-sharp feel and more control. The B6.1DL features our easy-access differential, diff height adjustability, and an all-new slipper with the speed, durability and lineage expected of a true champion.

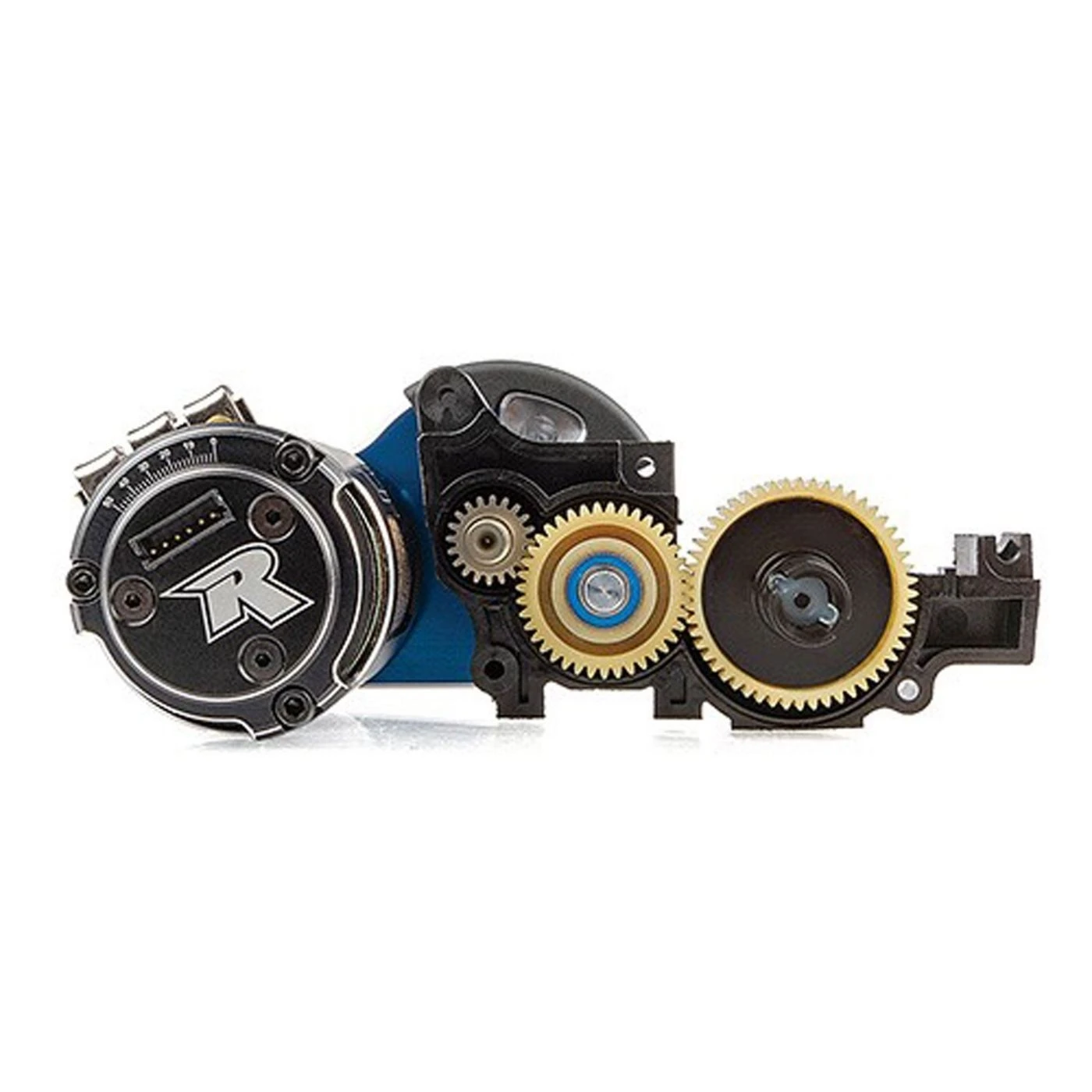

• 3-gear Laydown Stealth® transmission for lower and forward CG
• Machined pistons included for better fit and smoother operation
• Aluminum rear clamping hexes and front axles with laser etching
• Rear hubs feature large bearings and the easy-insert system to adjust camber link position and rear axle height
• One-piece shock bushings to make assembly easier
• Aluminum C and D arm mounts included for a large range of anti-squat and toe adjustments
• Lightweight aluminum top shaft
• Factory Team upgraded ball bearing kit included
• JConcepts® lightweight B6 clear body and wing
• Easy-access ball differential
• Differential height adjustments with 0, 1, 2, and 3mm inserts included

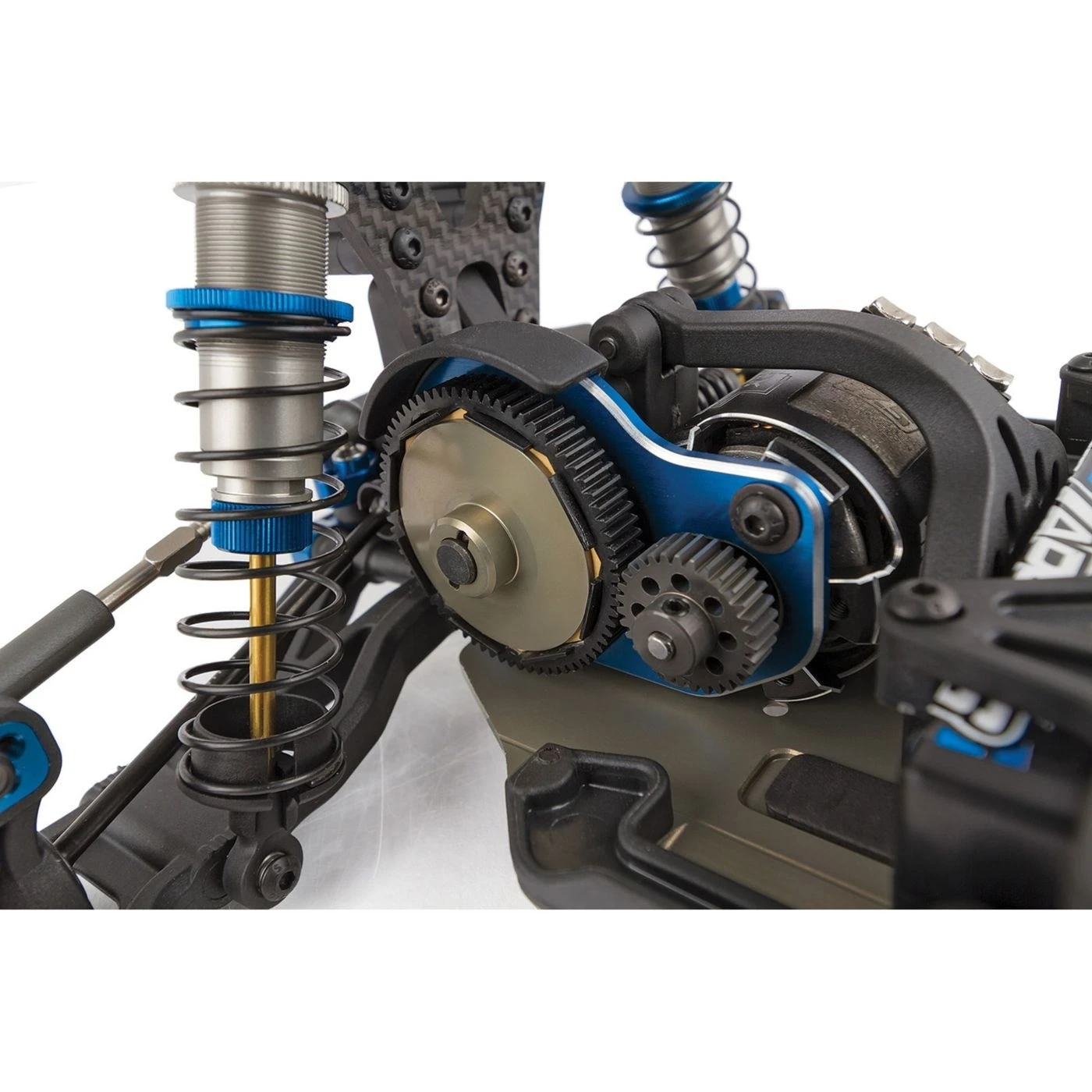

• New slipper assembly for better weight balance and shock clearance
• Heavy-duty V2 routed graphite front shock tower with tower guard
• Heavy-duty V2 routed graphite rear tower, long

Ball Bearings: Full set

Batteries: 7.4 – 7.6V LiPo, or 6.0 LiFe w/shorty dimensions (sold separately)

Body: JConcepts B6 lightweight clear w/wing included

Bushing Material: Metal

Charger: Sold separately

Chassis: 7075 aluminum, 0.12″ (3mm) thick

Completion Level: Kit

Differential: Ball type, adjustable height

Drivetrain: 2WD,RWD

Final Drive Ratio: Depends on selected pinion and spur gear

Gear Pitch: 48-Pitch

Max Battery Dimensions: 3.8 x 1.8 x 0.98″ (95.6 x 46.7 x 24.8mm)

Motor Size: 540 size (sold separately)

Motor Type: 540 size, brushless recommended

Radio: 2-Channel (sold separately)

Servos: High torque steering servo (sold separately)

Shock Type: Oil-filled

Size/Scale: 1/10

Speed Control: Sold separately

Water-Resistant: Yes

Wheel Diameter: 2.2″ (56mm)

Wheel Hex Size: 12mm Hex

Wheel Width: Front 1.02″ (26mm), Rear 1.42 (36mm), wheels sold separately

Wheelbase: 277mm-279mm,10.9 – 11″ (277 – 279mm)
