Traxxas Ford Bronco 4WD Electric Rock Crawler Truck With TQi 2.4GHz Radio System

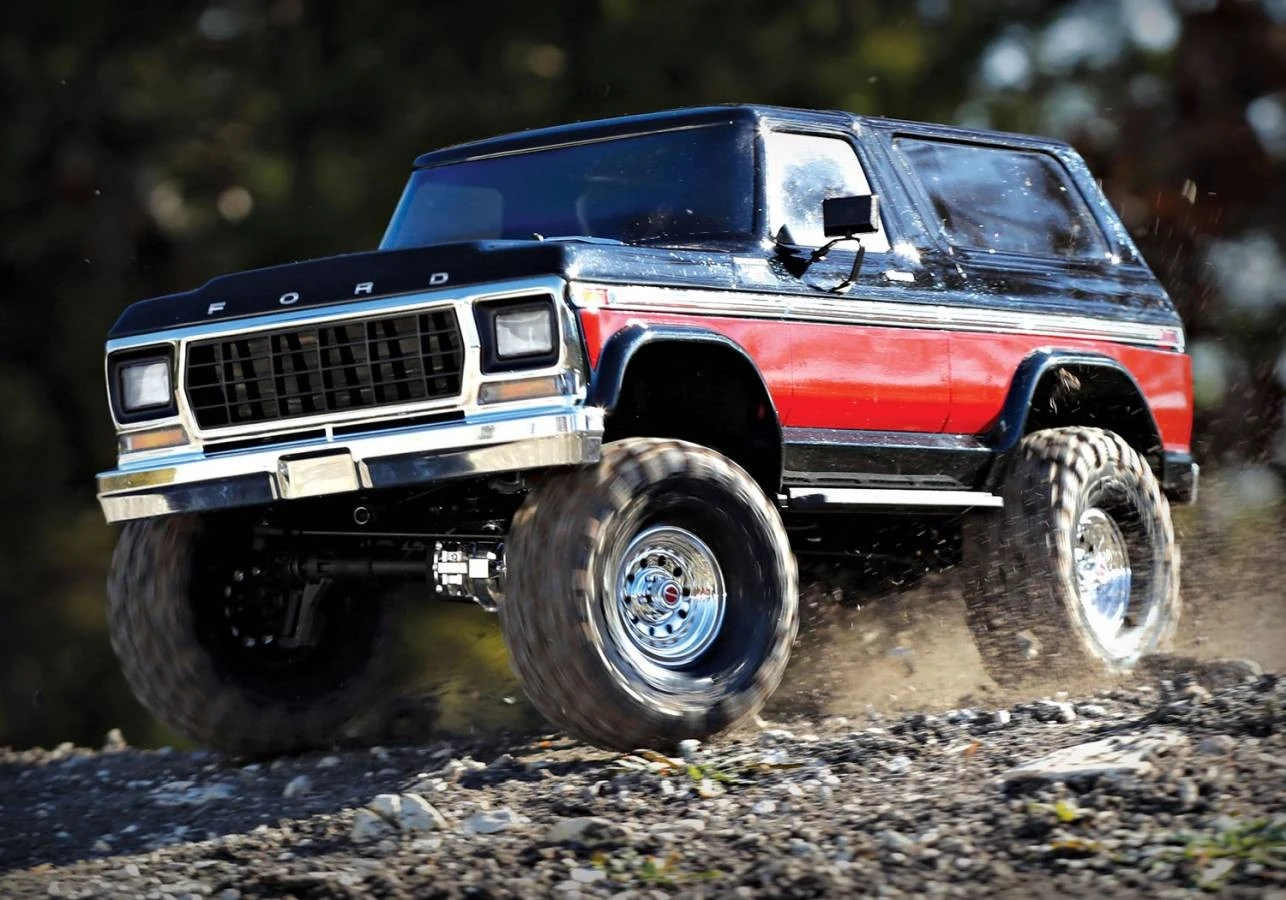

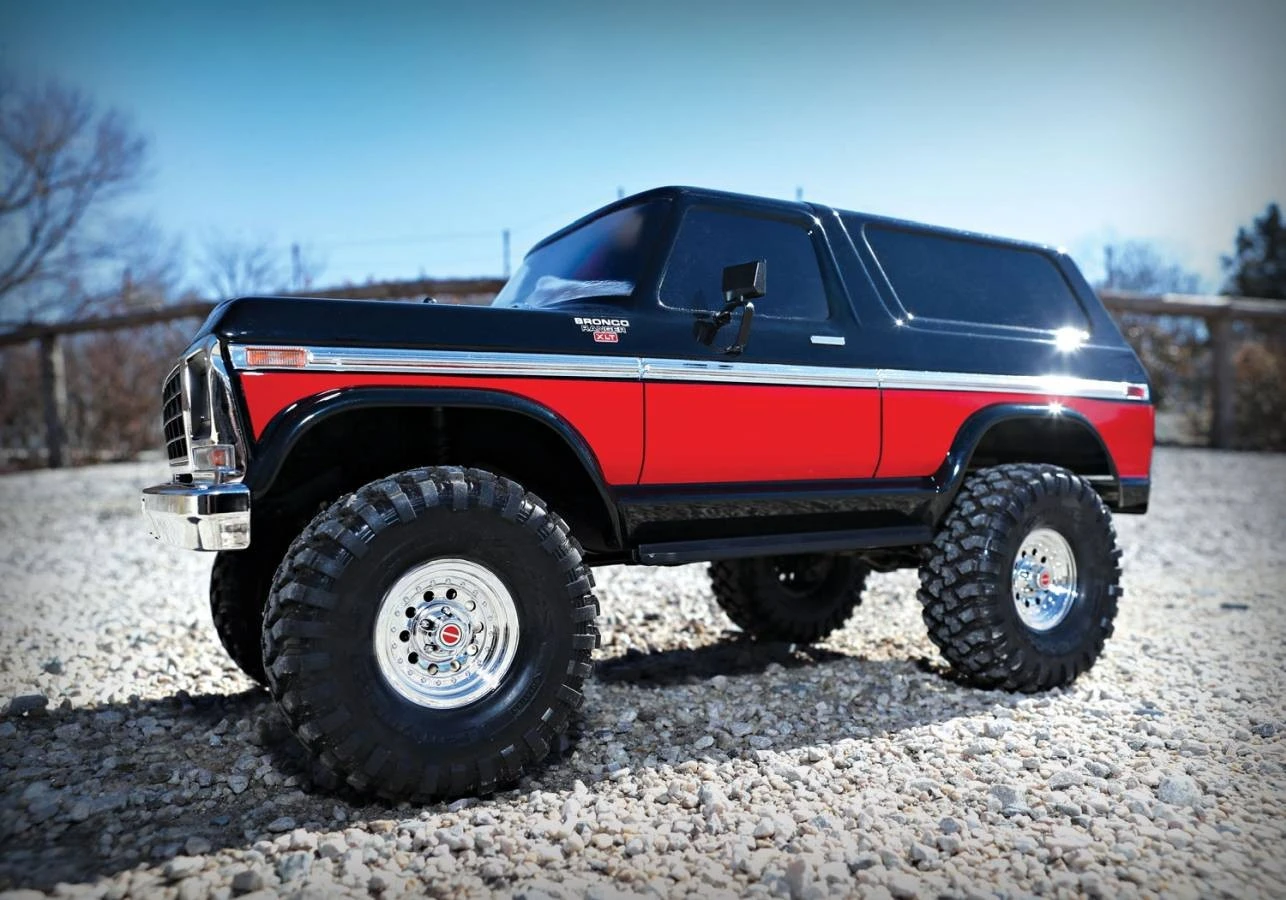

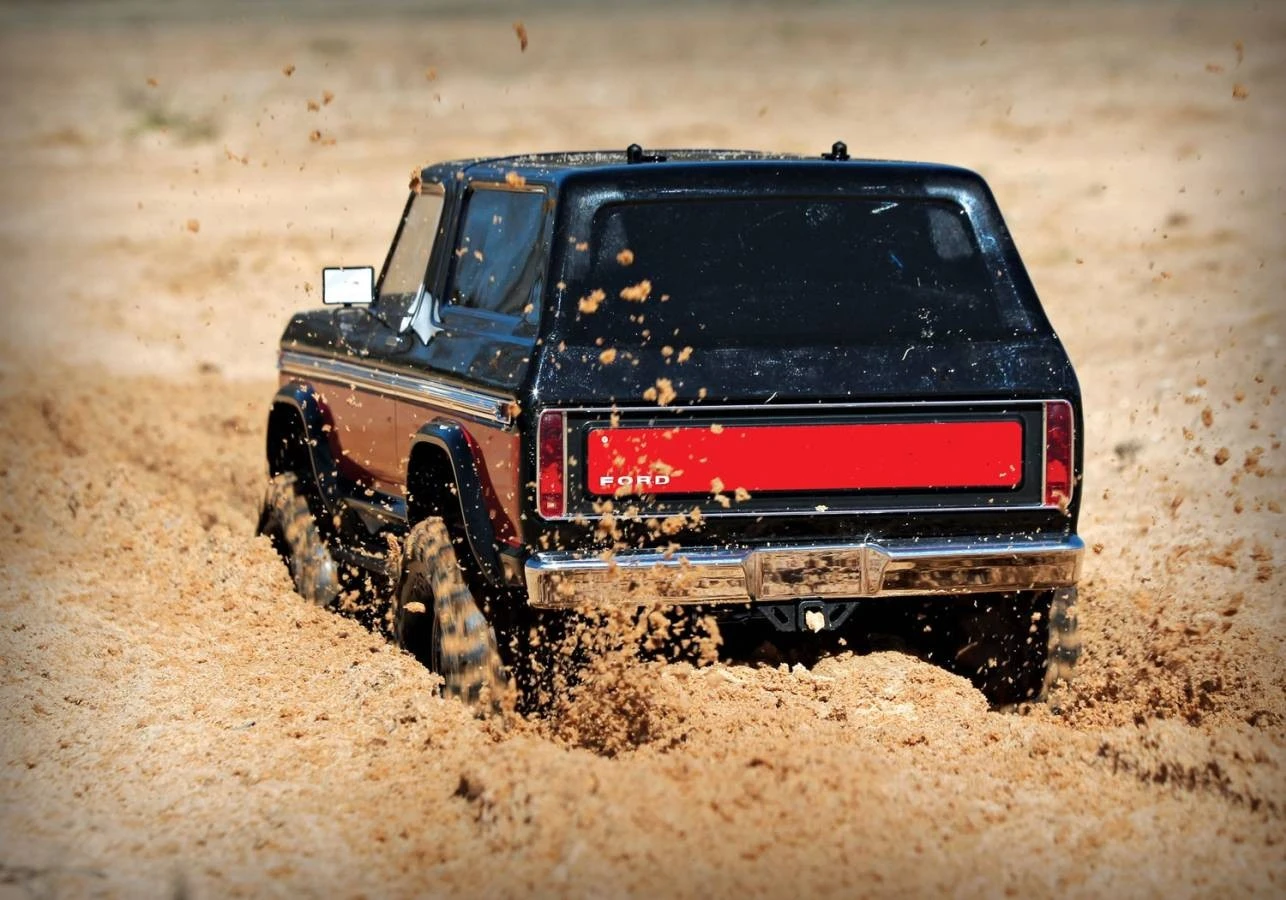

Originally introduced in 1966 as a 4×4 compact SUV, the Ford Bronco matured as a full-size truck in the late 1970s, cementing its status as a rugged off-roader. Traxxas honors the classic 1979 Ford Bronco with this beautifully detailed and faithful reproduction mounted on the incredibly capable TRX-4 chassis. From the chrome wheels and bumpers to the gorgeous Sunset or red graphics, the TRX-4 recaptures the Bronco’s iconic era with the toughness and technology that could only come from Traxxas.

• Officially Licensed Ford Bronco Body
• Scale details: grill, chrome bumpers, side mirrors, chrome side trim, and wipers
• Clear front and side windows
• Authentic decal sheet
• Full Nylon composite wheel wells and floor pans
• Additional scale accessories sold separately
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
• Fully waterproof design
• Five drive profiles
• Sport Mode — forward / brake / reverse
• Race Mode — forward / brake / no reverse
• Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
• Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
• Two stage low voltage protection (LVD)
• Motor
• Powerful Titan™ 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh
• Portal Axles
• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

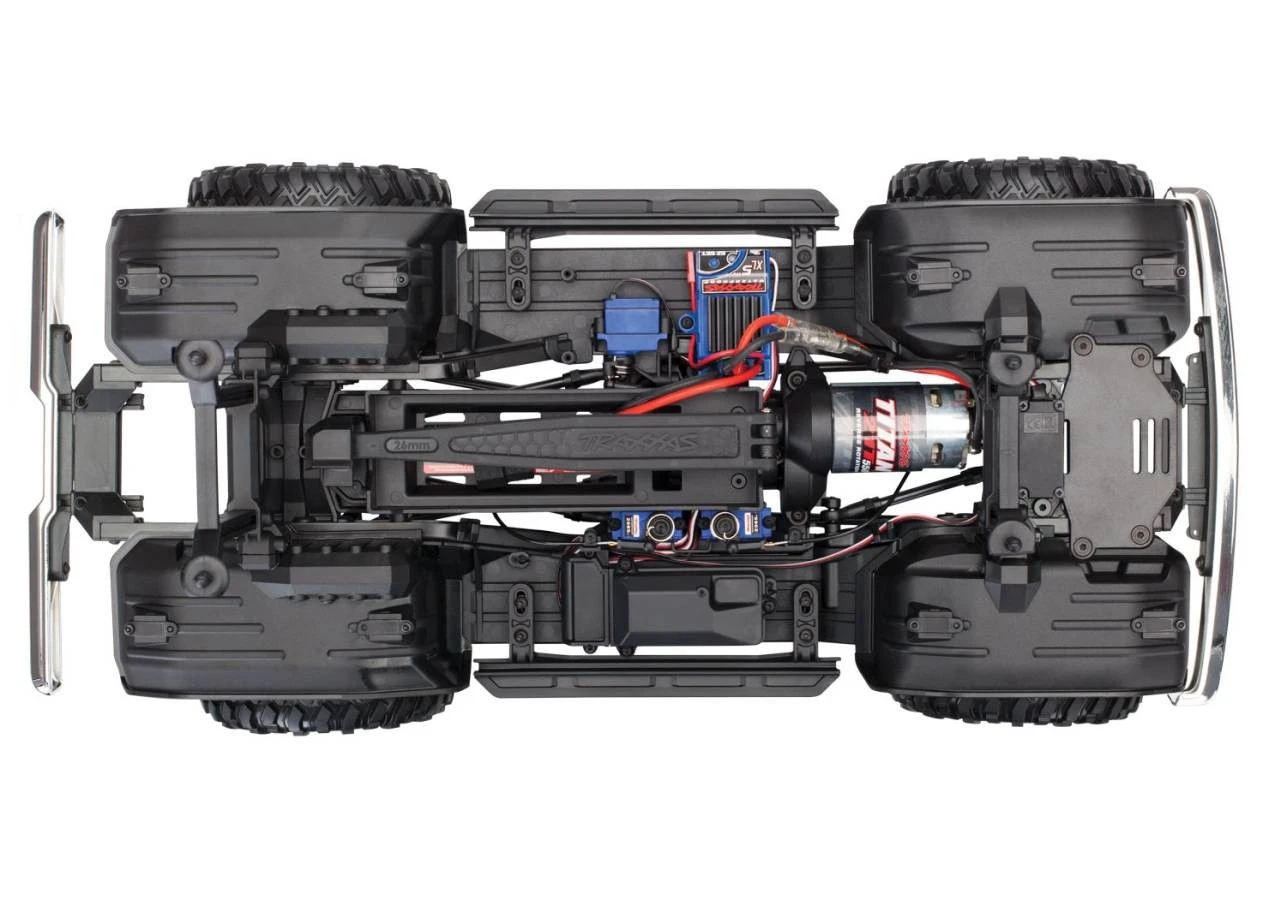

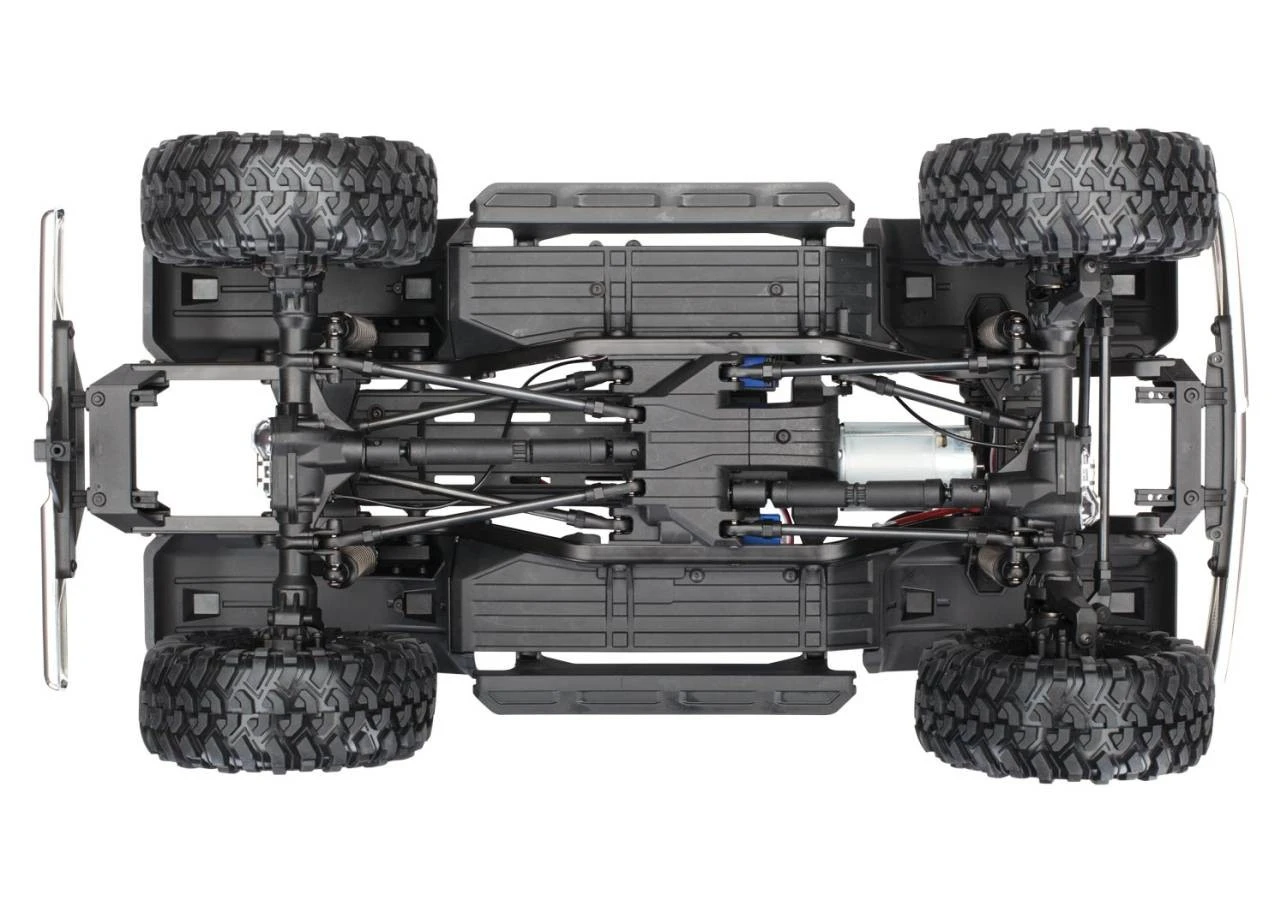

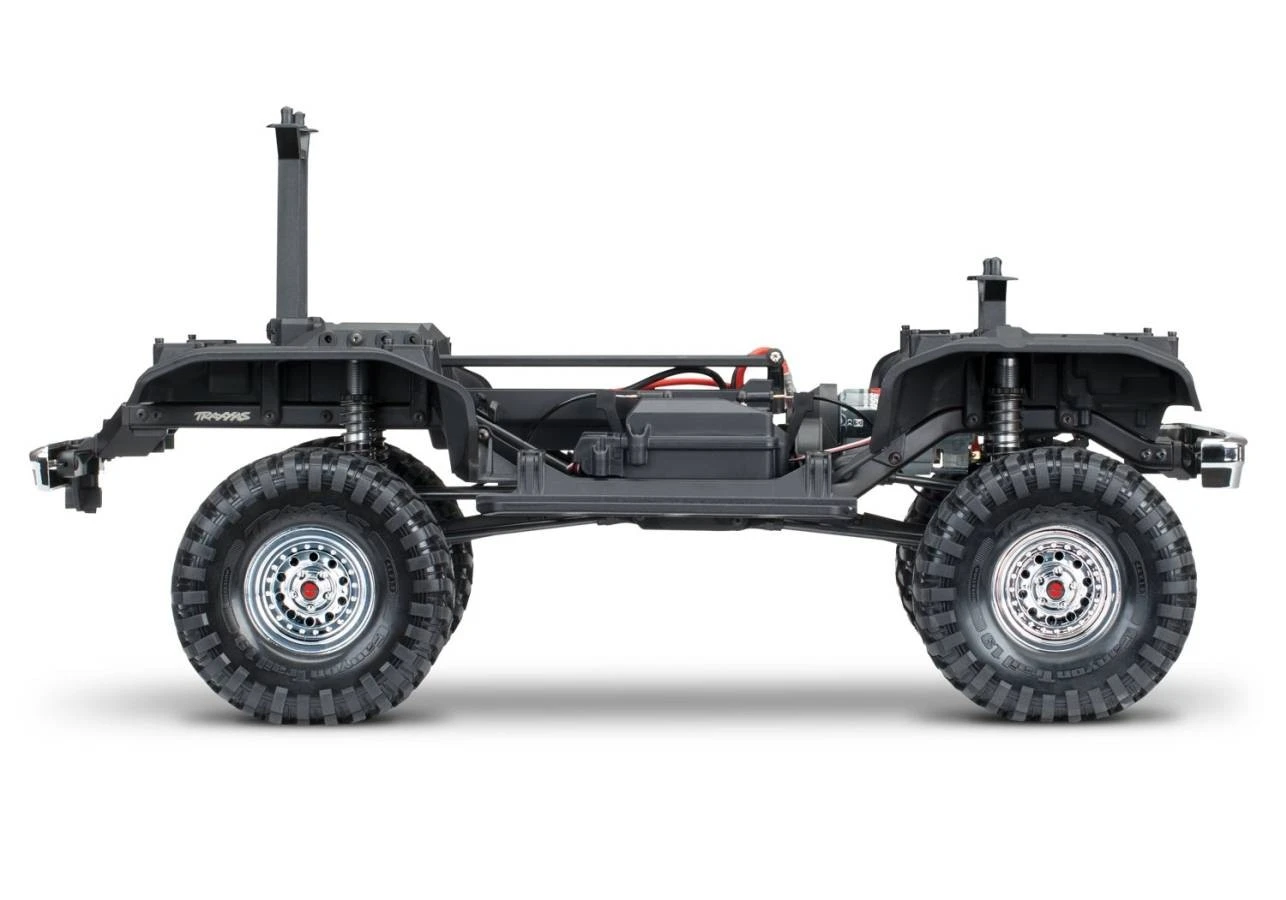

• Rigid Steel Frame
• 1.5mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails
• Drivetrain
• Full-time shaft driven 4-wheel drive
• Tough 6mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case
• Innovative Battery Compartment
• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
• Two speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing

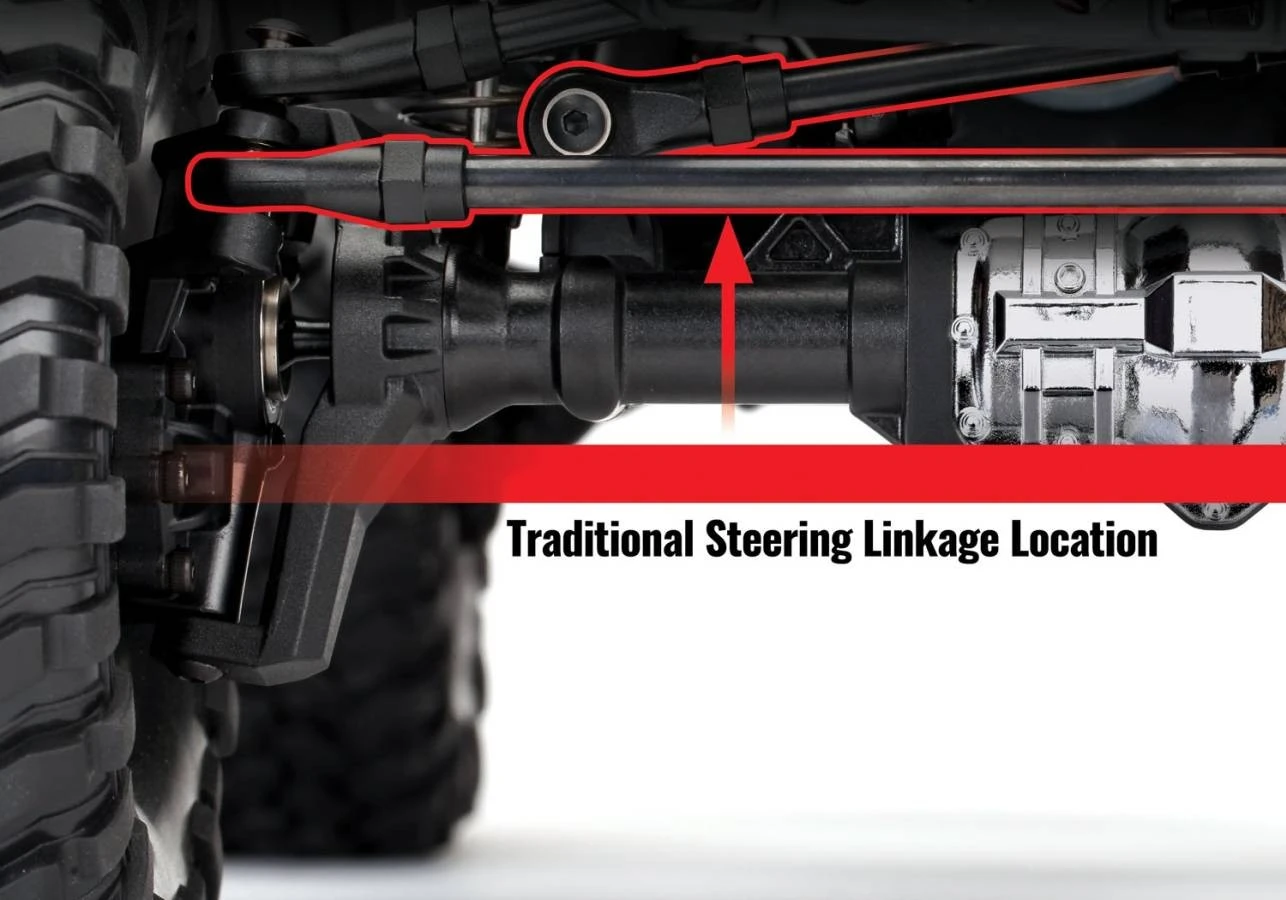

• Steering
• Chassis mounted tra2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer
• Suspension
• Front — 3 link with panhard
• Rear — Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5mm diameter steel link rods with 4mm threaded ends
• Aluminum GTS Shocks
• Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals

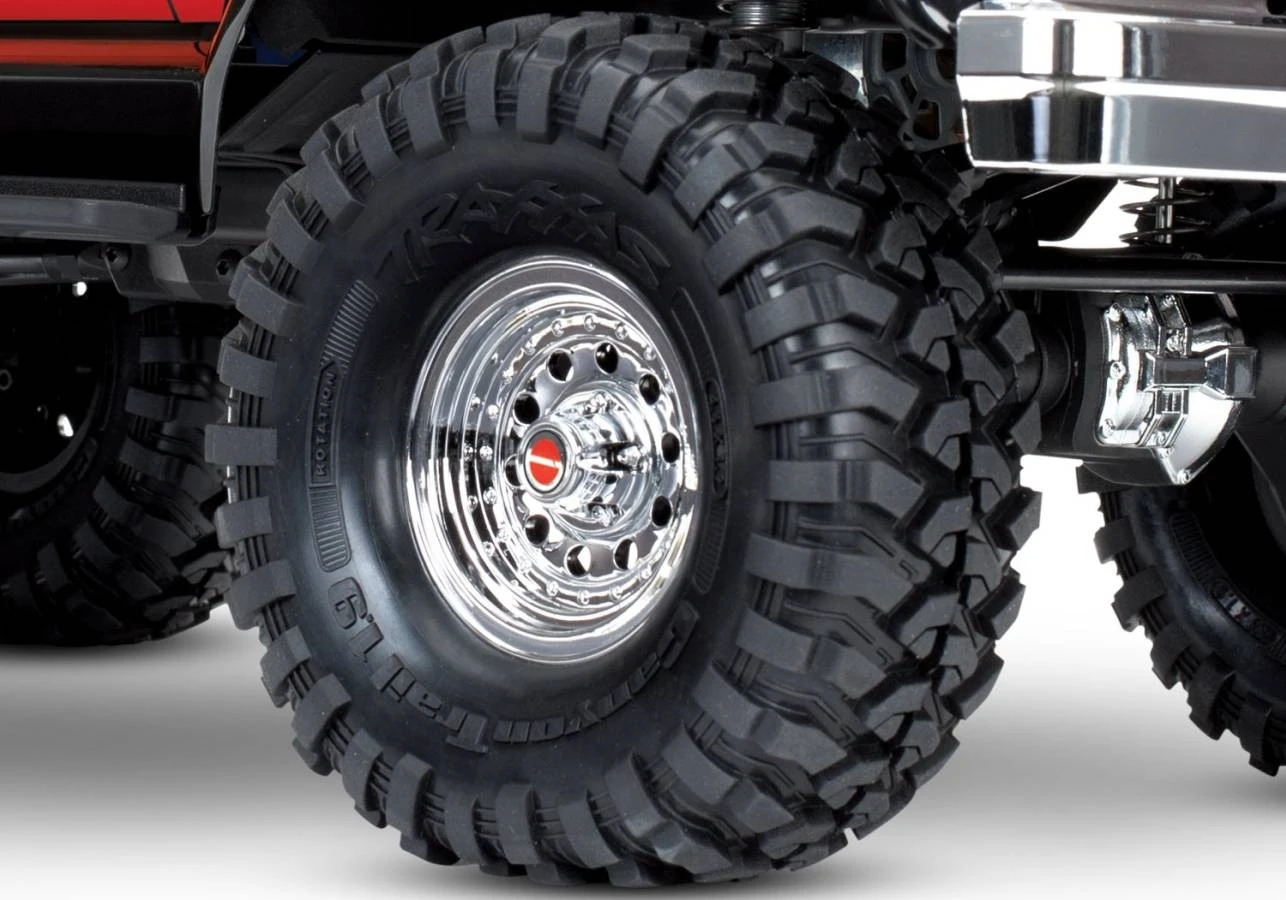

• Wheels and Tires
• Replica chrome wheels with hub inserts
• Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
• Trail tuned S1 rubber compound
• 12mm steel hex
• Transmitter
• TQi™ 2.4GHz 4-channel transmitter
• Traxxas Link enabled
• Telemetry ready tra6533 5-channel micro receiver with failsafe
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• High 13ms frame rate and near-zero latency for responsive control

Hex Size: 12mm

Speed Control: XL-5 HV

Motor (electric): 21T Reverse Rotation

Transmission: 2-speed Hi-Lo, Remote Shifting

Gear Pitch: 32P

Differential Type: 4 Gear, Remote Locking

Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers

Brake Type: Electronic “Hill Hold”

Drive System: Shaft Driven 4WD

Steering: Chassis Mounted Servo

Servo: tra2075X Metal Gear

Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter

Receiver: 6533

Skill Level: 2

Battery Tray: 158.75 L x 47 W x 23/26mm H

Length: 20.57 inches (523mm)

Front Track: 9.78 inches (249mm)

Rear Track: 9.78 inches (249mm)

Ground Clearance: 3.14 inches (80mm)

Weight: 6.42lb (2.91kg)

Height: 10.47 inches (266mm)

Wheelbase: 12.28 inches (312mm)

Approach Angle: 63.82°

Departure Angle: 43.22°

Breakover Angle: 58.93°

Front Shock Length: 3.54 inches (90mm)

Rear Shock Length: 3.54 inches (90mm)

Front Wheels: 1.9 x 1.02 inches (49 x 26mm)

Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)

Front Tires: 4.64 x 1.89 inches (118 x 48mm)

Rear Tires: 4.64 x 1.89 inches (118 x 48mm)

Heavy-Duty Steel Frame Rails:
A thick 1.5mm steel ladder frame with molded cross members provides exceptional torsional rigidity to resist even the worst chassis twisting articulation. This extremely rigid backbone lets the suspension do the work it was designed to do. You’ll feel the difference on trails where the elimination of chassis flex allows for precise wheel placement when navigating technical terrain.

Adjustable Wheelbase:
The innovative shock towers allow four separate “bolt-on” wheelbase positions: 300, 312, 324, and 336mm to accommodate custom body fitment. Further fine tuning is possible with the axle links and adjustable shock position.

Molded Wire Retainers:
The finer details matter so we incorporated wire retainers into the frame rails, which provide a clean look and keep the wiring more secure from off-road hazards.

Officially Licensed Ford Bronco Body:
Scale details: grill, chrome bumpers, side mirrors, chrome side trim, and wipers
Clear front and side windows
Authentic decal sheet
Full Nylon composite wheel wells and floor pans
Additional scale accessories sold separately
