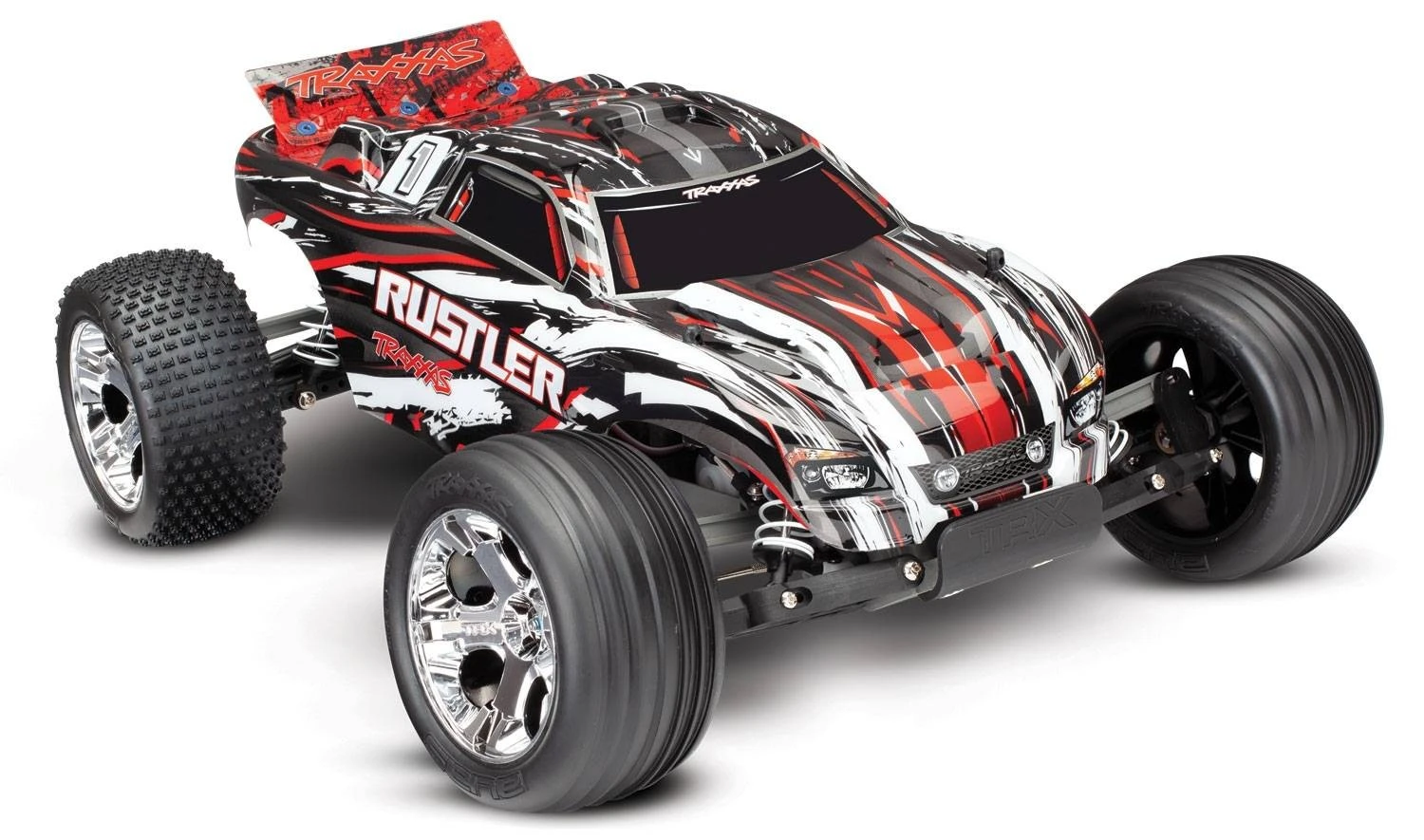

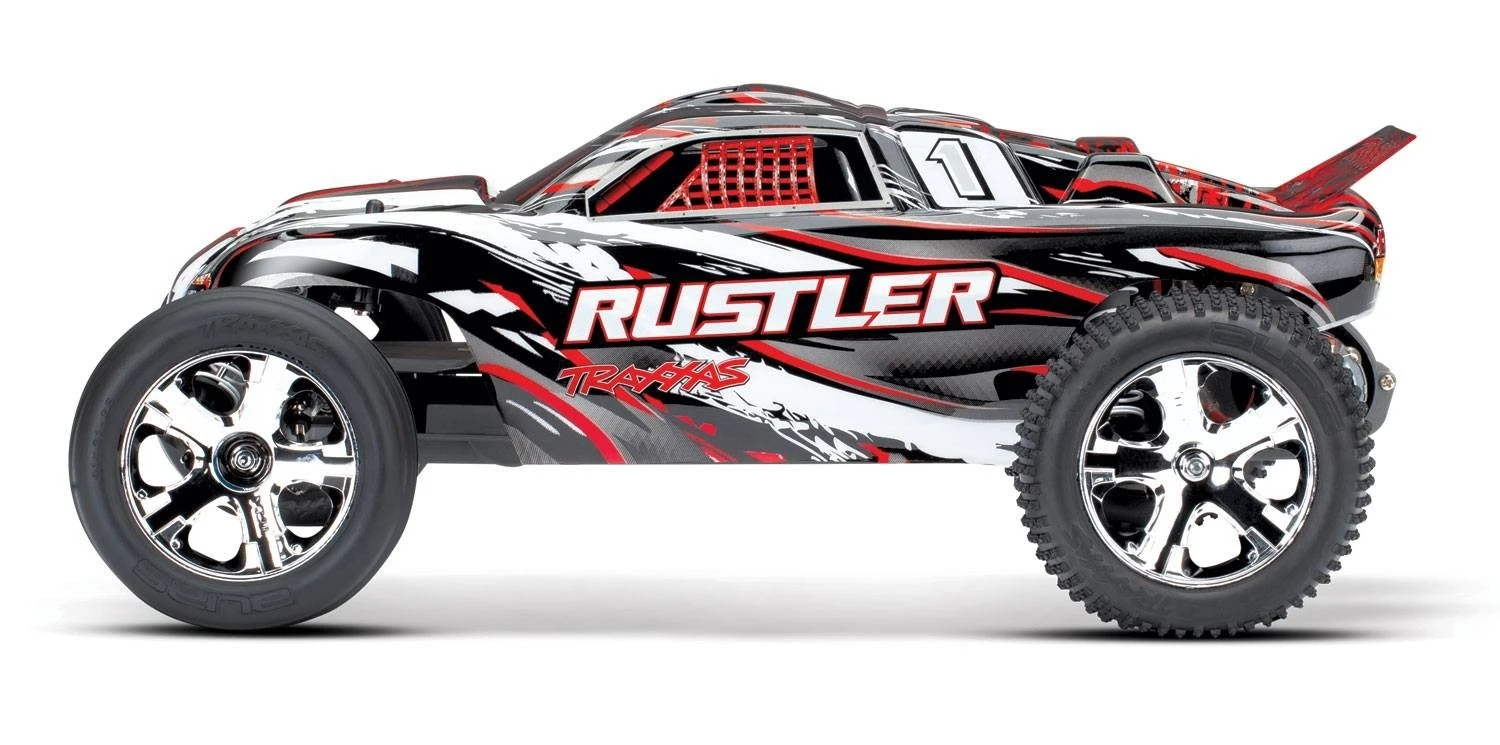

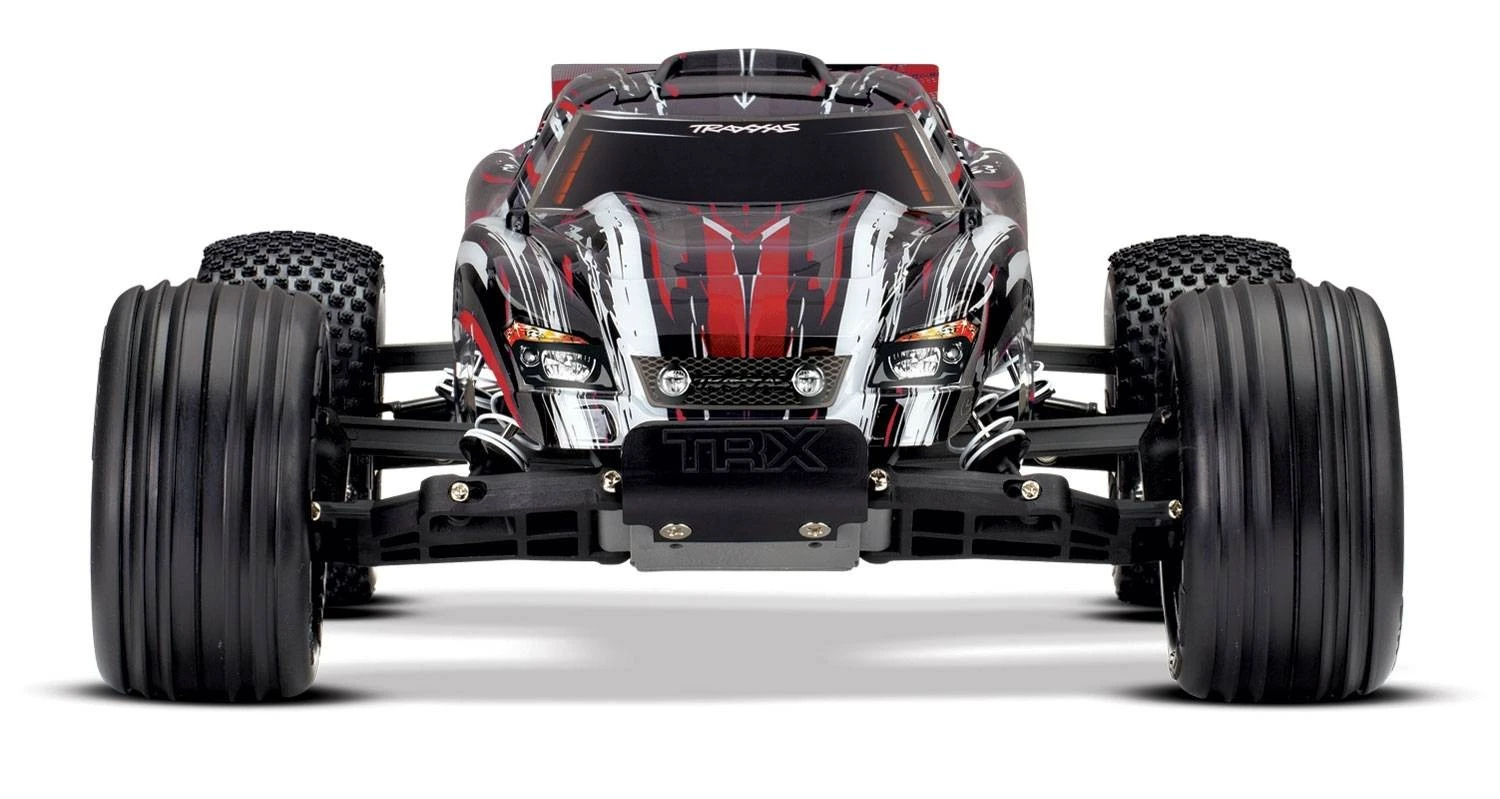

Traxxas Rustler 1/10 Scale Brushed Stadium Truck With TQ 2.4 GHz Radio System

The Traxxas Rustler has a winning formula for rugged, dependable fun! The Rustler brings RC fun to a whole new level with faster speeds, innovative technology, and hobby-grade durability for years of fun. With a top speed of 35+mph*, Rustler rips off-road roost with its powerful Titan® 12-turn modified 550 motor and XL-5 Electronic Speed Control. Traxxas’ exclusive waterproof electronics allow Rustler to blast through puddles, mow through mud and shred snow for wild all-weather fun. Your RC adventures are limited only by your imagination. Step up to genuine Traxxas quality and performance and discover a whole new level of fun with the Traxxas Rustler!

The Rustler’s exclusive watertight, sealed electronics provide the freedom to drive through water, mud, snow, and other wet-running conditions. The XL-5 electronic speed control and the mini receiver are sealed against the elements. It opens up a whole new world of adventure and fun.

• Traxxas TQ 2.4GHz radio system

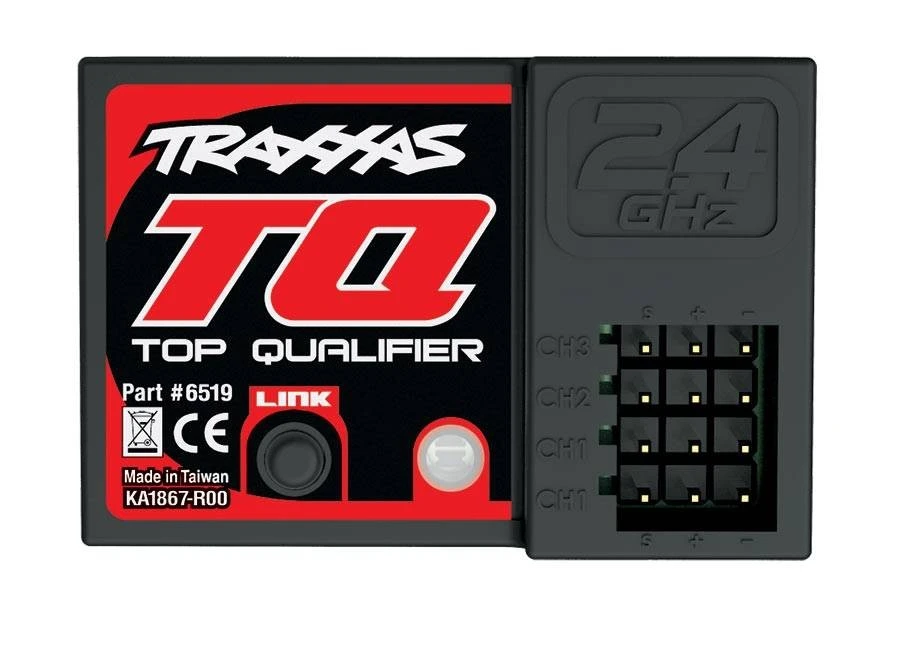

• Traxxas tra6519 TQ 3-channel micro receiver
• Waterproof electronics permit driving in water, mud and snow
• Waterproof receiver box

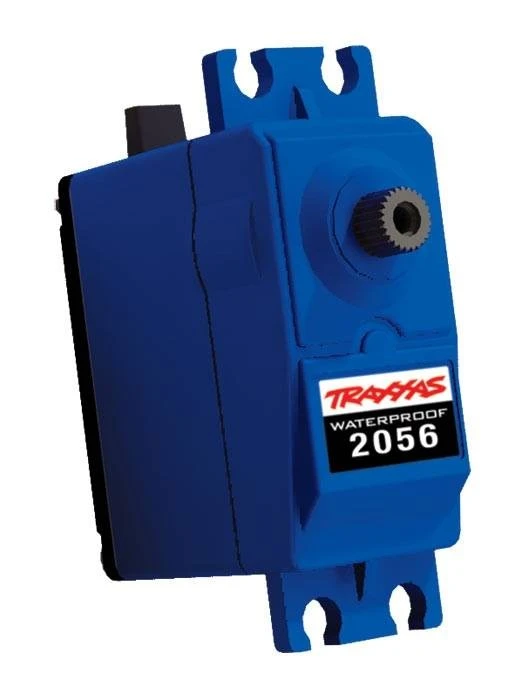

• High-torque waterproof Traxxas tra2056 steering servo
• Powerful Titan® 12T 550 modified motor with internal cooling fan
• Rustler reaches speeds in excess of 35mph using the included
• optional 28-tooth pinion gear*
• High-performance waterproof XL-5™ electronic speed control
• Innovative watersealed design
• Three drive profiles
• Sport Mode – forward / brake / reverse
• Race Mode – forward / brake
• Training Mode™ – 50% forward / brake / 50% reverse (patented)
• 12-turn motor limit for 550 size motors
• 15-turn motor limit for 540 size motors
• Integrated on/off switch
• Traxxas EZ-Set® one-button setup
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• High-efficiency MOSFET transistors
• Large axle carriers with 5x11mm Oilite bushings

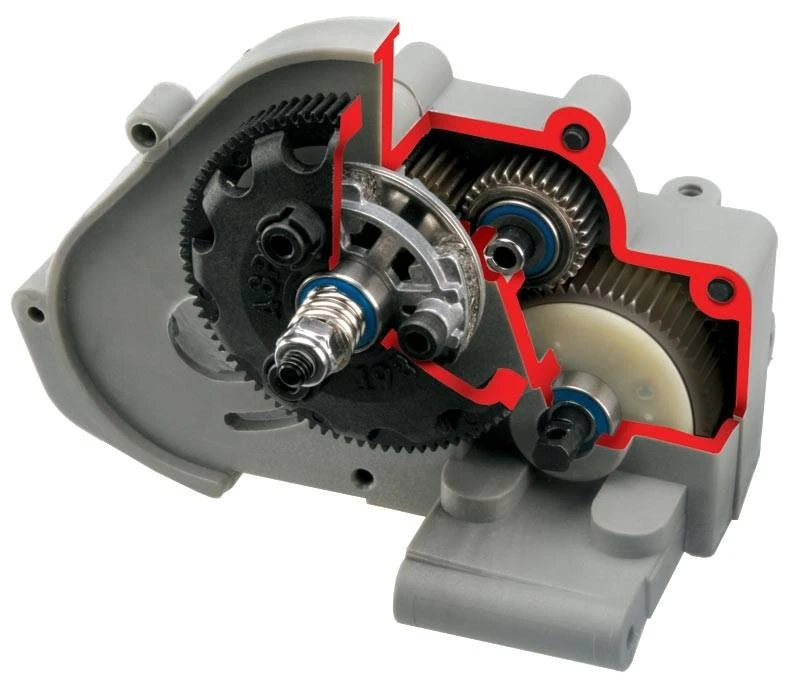

• Efficient Magnum 272™ three-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor
• guard for extra protection
• Torque-Control™ slipper clutch system
• External gear cover with easy slipper access
• Reliable planetary gear differential
• Telescoping U-joint driveshafts

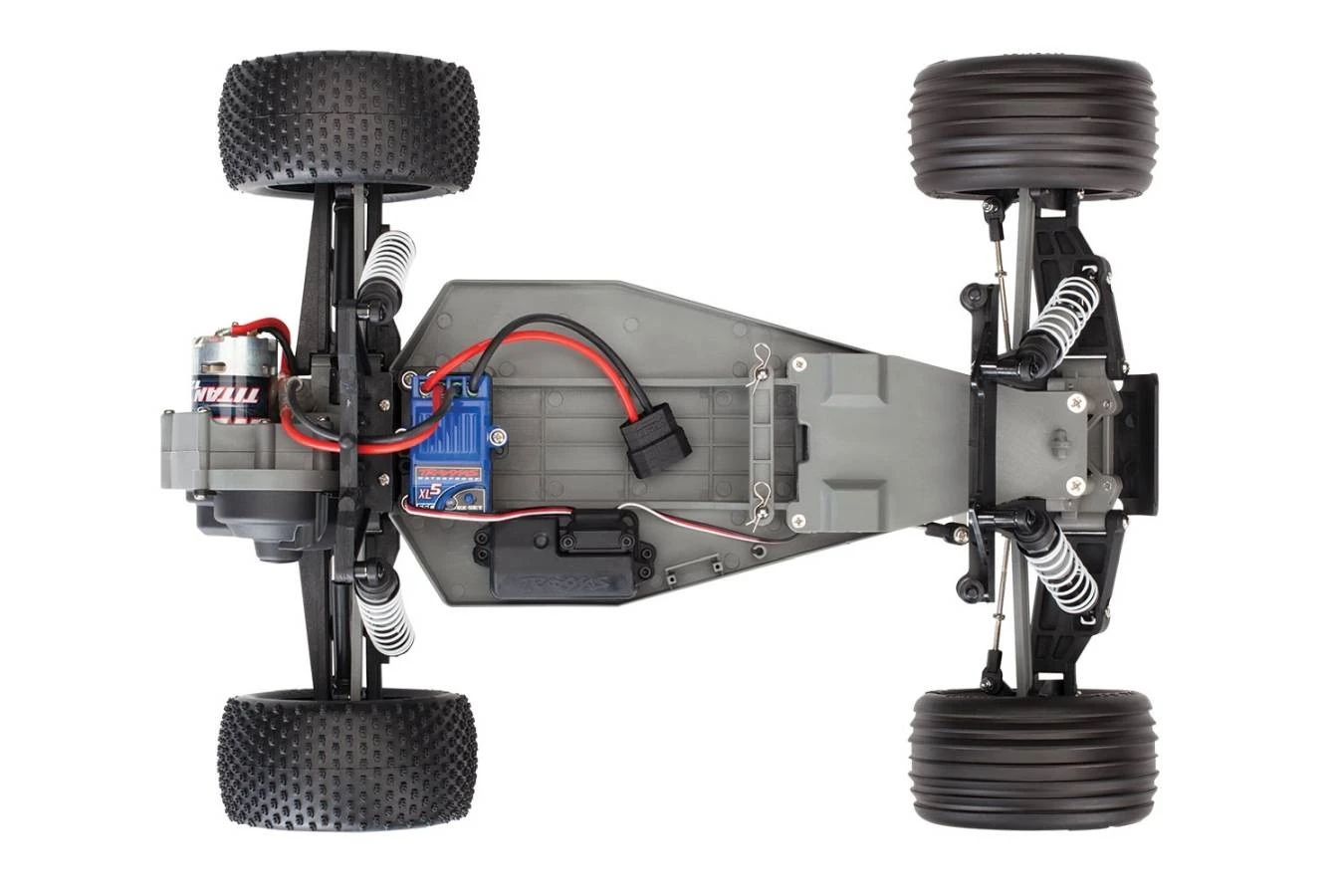

• Fiber-composite monocoque chassis
• Speed control and waterproof receiver box are securely fastened to chassis
• Easy access battery compartment
• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a new responsive spring rate

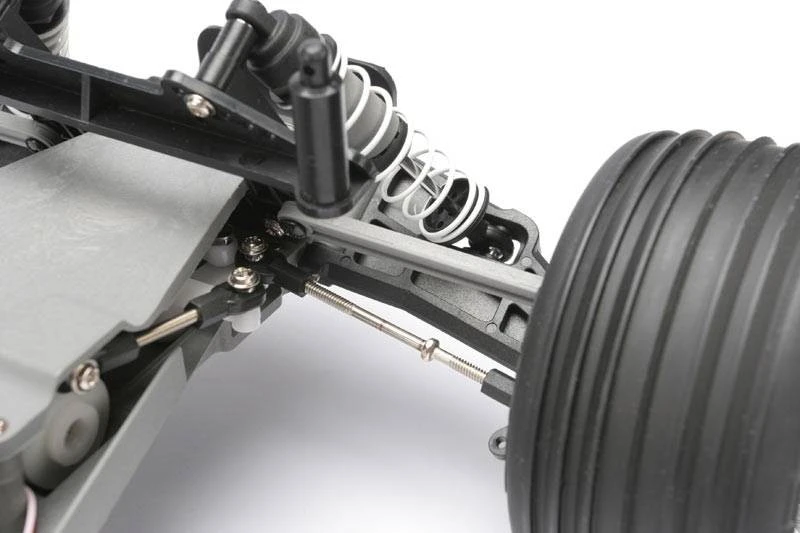

• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won’t pop off for superior durability
• Alias™ step-pin rear tires and Alias ribbed front tires offer superior
• off-road traction
• Rustler’s tires include performance foam inserts and they come
• pre-glued on mirror-chrome 2.8″ All-Star™ wheels
• ProGraphix® pre-painted body
• Wing is securely attached to the body with precision hex hardware
• Rustler is backed by unparalleled Traxxas support and parts availability

Length: 17.5″ (445mm)

Front Track: 12.25″ (311mm)

Rear Track: 12.25″ (311mm)

Weight: 59.6oz (1.69 kg)

Height (overall): 7″ (178mm)

Wheelbase: 11.375″ (289mm)

Front Shock Length: Long

Rear Shock Length: XX-Long

Front Tires (pre-glued): Alias™ Ribbed 2.8″

Rear Tires (pre-glued): Alias™ Step-Pin 2.8″

Front Wheels: 2.8″ Mirror-Chrome (All-Stars™)

Rear Wheels: 2.8″ Mirror-Chrome (All-Stars™)

Electronic Speed Control: XL-5™ Electronic Speed Control

Motor (electric): Titan® 12T 550 (12-turn 550)

Steering Servo: tra2056 High Torque Waterproof

Transmitter: TQ 2.4GHz Radio

Receiver: tra6519 TQ 3-Channel Micro

Gear Ratio (internal): 2.72 (final drive: 10.17)

Differential Type: Planetary

Gear Pitch: 48-Pitch

Transmission: Magnum 272™

Steering: Bellcrank

Chassis Type: Modified Tub

Chassis Material: Composite Nylon

Top-Speed: 35+mph**

Skill Level: 1

*Battery Tray Dimensions: 139mm x 47.5mm x 28mm

Required Items: NiMH or LiPo Battery, Charger, 4 “AA” Batteries (Transmitter)

Titan® 12-Turn 550 Modified Motor:
The Rustler includes a powerful Titan 12T 550 modified motor with internal cooling fan – an industry first for this class of truck! The Titan’s oversized armature (30% larger compared to 540-sized armatures) features 12 turns of pure copper wire for big torque and increased power-handling capabilities. The integrated cooling fan lowers running temperatures for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent torque and high speeds run-after-run, without fading. Beyond the specs, the Titan 12T is made for dirt-roosting torque, lightning-quick acceleration, big-air jumps, and just about any other 4-wheel fun that demands real horsepower.

XL-5 Waterproof Electronic Speed Control:
Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC packs impressive features that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

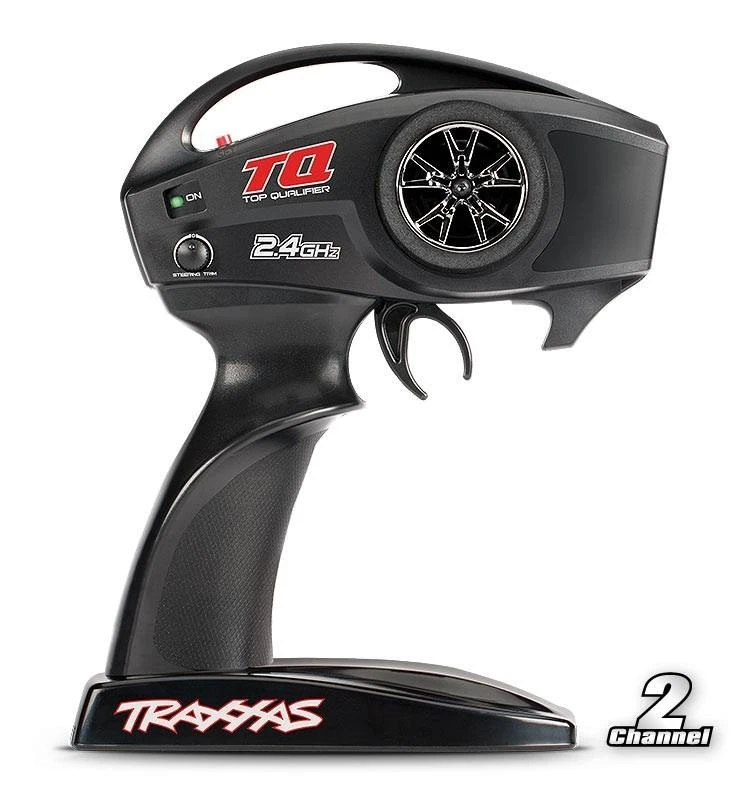

Precision 2.4GHz Control:
Switch on the power and drive! That’s all there is to it with the TQ™ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ’s advanced programming provides long-range control with smooth, glitch-free performance. The TQ’s ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.

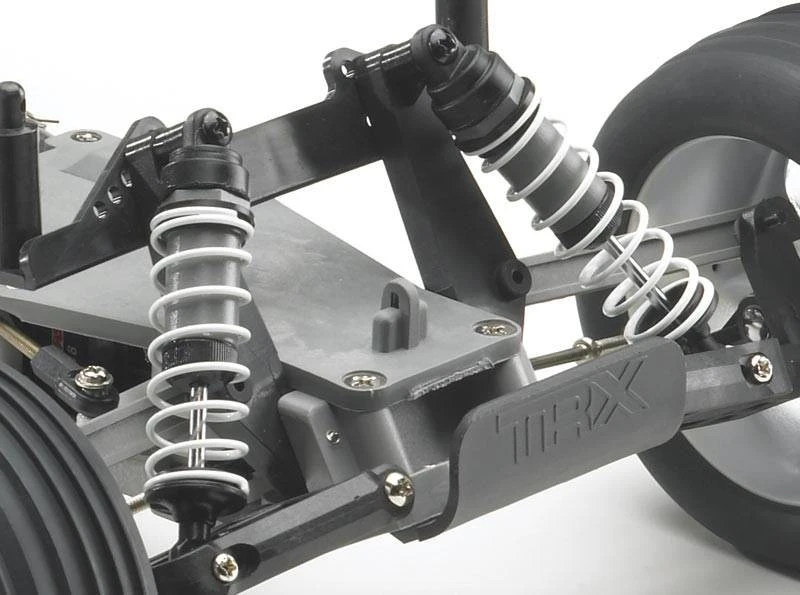

Oil-Filled Ultra Shocks™:
Rustler’s oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and silky-smooth performance. They are easy to customize with a wide range of high-performance oils, springs, and pistons available. Features include pressure bladders for air/oil separation and spring clips to change precisely the ride height and spring pre-load tension. If their performance ever fades, refresh them in minutes with our inexpensive rebuild kits.

Alias™ Tires and All-Star™ Wheels:
The Rustler rides on impressive 2.8″ All-Star™ mirror-chrome wheels. Alias™ step-pin rear tires and ribbed front tires keep the Rustler firmly planted on extreme off-road terrain.
The All-Star wheels feature a lightweight horizontal bead that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts are standard and all tires come pre-glued from the factory to get you rolling right out of the box.
